#include <engine_configuration_generated_structures_alphax-2chan.h>

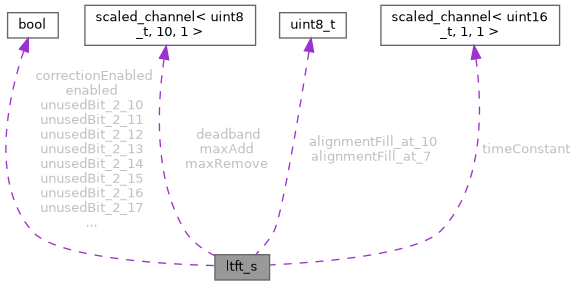

Collaboration diagram for ltft_s:

[legend]

Data Fields
bool	enabled: 1 {}

bool	correctionEnabled: 1 {}

bool	unusedBit_2_2: 1 {}

bool	unusedBit_2_3: 1 {}

bool	unusedBit_2_4: 1 {}

bool	unusedBit_2_5: 1 {}

bool	unusedBit_2_6: 1 {}

bool	unusedBit_2_7: 1 {}

bool	unusedBit_2_8: 1 {}

bool	unusedBit_2_9: 1 {}

bool	unusedBit_2_10: 1 {}

bool	unusedBit_2_11: 1 {}

bool	unusedBit_2_12: 1 {}

bool	unusedBit_2_13: 1 {}

bool	unusedBit_2_14: 1 {}

bool	unusedBit_2_15: 1 {}

bool	unusedBit_2_16: 1 {}

bool	unusedBit_2_17: 1 {}

bool	unusedBit_2_18: 1 {}

bool	unusedBit_2_19: 1 {}

bool	unusedBit_2_20: 1 {}

bool	unusedBit_2_21: 1 {}

bool	unusedBit_2_22: 1 {}

bool	unusedBit_2_23: 1 {}

bool	unusedBit_2_24: 1 {}

bool	unusedBit_2_25: 1 {}

bool	unusedBit_2_26: 1 {}

bool	unusedBit_2_27: 1 {}

bool	unusedBit_2_28: 1 {}

bool	unusedBit_2_29: 1 {}

bool	unusedBit_2_30: 1 {}

bool	unusedBit_2_31: 1 {}

scaled_channel< uint8_t, 10, 1 >	deadband

scaled_channel< uint8_t, 10, 1 >	maxAdd

scaled_channel< uint8_t, 10, 1 >	maxRemove

uint8_t	alignmentFill_at_7 [1] = {}

scaled_channel< uint16_t, 1, 1 >	timeConstant

uint8_t	alignmentFill_at_10 [2] = {}

Detailed Description

Definition at line 103 of file engine_configuration_generated_structures_alphax-2chan.h.

Field Documentation

◆ alignmentFill_at_10

uint8_t ltft_s::alignmentFill_at_10 = {}

need 4 byte alignment units: units offset 10

Definition at line 240 of file engine_configuration_generated_structures_alphax-2chan.h.

240{};

◆ alignmentFill_at_7

uint8_t ltft_s::alignmentFill_at_7 = {}

need 4 byte alignment units: units offset 7

Definition at line 226 of file engine_configuration_generated_structures_alphax-2chan.h.

226{};

◆ correctionEnabled

bool ltft_s::correctionEnabled

Apply LTFT trims into fuel calculation on top of VE table. We do not adjust VE table automatically, please click 'Apply to VE' if you want to adjust your VE tables and reset trims. offset 0 bit 1

Enables applying long term fuel corrections offset 0 bit 1

Definition at line 112 of file engine_configuration_generated_structures_alphax-2chan.h.

Referenced by getConfigValueByHash(), setConfigValueByName(), and setDefaultBaseEngine().

◆ deadband

scaled_channel< uint8_t, 10, 1 > ltft_s::deadband

When close to correct AFR, pause correction. This can improve stability by not changing the adjustment if the error is extremely small, but is not required. units: % offset 4

Definition at line 208 of file engine_configuration_generated_structures_alphax-2chan.h.

Referenced by getConfigValueByHash(), and setConfigValueByName().

◆ enabled

bool ltft_s::enabled

Enables lambda sensor long term fuel corrections data gathering into LTFT trim tables offset 0 bit 0

Enables lambda sensor long term fuel corrections learning offset 0 bit 0

Definition at line 107 of file engine_configuration_generated_structures_alphax-2chan.h.

Referenced by getConfigValueByHash(), setConfigValueByName(), setDefaultBaseEngine(), and setDefaultLtftSettings().

◆ maxAdd

scaled_channel< uint8_t, 10, 1 > ltft_s::maxAdd

Maximum % that the long term fuel trim can add units: % offset 5

Definition at line 214 of file engine_configuration_generated_structures_alphax-2chan.h.

Referenced by getConfigValueByHash(), LtftState::load(), and setConfigValueByName().

◆ maxRemove

scaled_channel< uint8_t, 10, 1 > ltft_s::maxRemove

Maximum % that the long term fuel trim can remove units: % offset 6

Definition at line 220 of file engine_configuration_generated_structures_alphax-2chan.h.

Referenced by getConfigValueByHash(), LtftState::load(), and setConfigValueByName().

◆ timeConstant

scaled_channel< uint16_t, 1, 1 > ltft_s::timeConstant

Commonly referred as Integral gain. Time constant for correction while in this cell: this sets responsiveness of the closed loop correction. A value of 30.0 means it will try to make most of the correction within 30 seconds, and a value of 300.0 will try to correct within 5 minutes. Lower values makes the correction more sensitive, higher values slow the correction down. units: sec offset 8

Definition at line 234 of file engine_configuration_generated_structures_alphax-2chan.h.

Referenced by getConfigValueByHash(), and setConfigValueByName().
