toyota_jz.h File Reference

Functions
void	setToyota_2jz_vics ()

Function Documentation

setToyota_2jz_vics()

void setToyota_2jz_vics

(

)

TOYOTA_2JZ_GTE_VVTi set engine_type 44

Definition at line 59 of file toyota_jz.cpp.

                          {
    common2jz();

    setCrankOperationMode();
    engineConfiguration->trigger.type = trigger_type_e::TT_TOOTHED_WHEEL_36_2;

    engineConfiguration->vvtMode[0] = VVT_TOYOTA_3_TOOTH;

    // set global_trigger_offset_angle 155
    engineConfiguration->globalTriggerAngleOffset = 155; // todo

    engineConfiguration->ignitionMode = IM_WASTED_SPARK; // just for now
    engineConfiguration->injectionMode = IM_BATCH; // just for now
    engineConfiguration->twoWireBatchIgnition = true;

    // todo: these magic values would be hardcoded once we find out proper magic values!
    //  engineConfiguration->scriptSetting[4] = 175 - 45;
    //  engineConfiguration->scriptSetting[5] = 175 + 45;

}

Referenced by applyEngineType().

Here is the call graph for this function:

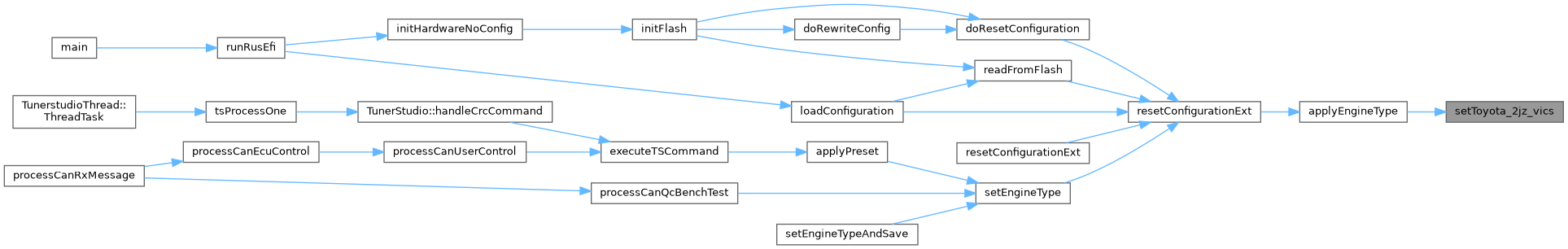

Here is the caller graph for this function:

Go to the source code of this file.
