subaru.h File Reference

Detailed Description

Date

Sep 14, 2014

Author

Andrey Belomutskiy, (c) 2012-2020

Definition in file subaru.h.

Functions
void	setSubaruEJ20GDefaults ()
void	setSubaruEJ18_MRE ()
void	setSubaruEG33Defaults ()
void	setSubaru2011 ()

Function Documentation

setSubaru2011()

void setSubaru2011

(

)

Definition at line 100 of file subaru.cpp.

                     {
  engineConfiguration->allowIdenticalPps = true;
  setPPSCalibration(0.69, 3.38, 0.69, 3.38);

    engineConfiguration->displacement = 2.5;
    strcpy(engineConfiguration->engineMake, ENGINE_MAKE_SUBARU);
    engineConfiguration->trigger.type = trigger_type_e::TT_36_2_2_2;
  engineConfiguration->vvtMode[0] = VVT_BOSCH_QUICK_START;
  engineConfiguration->vvtMode[1] = VVT_BOSCH_QUICK_START;
    engineConfiguration->firingOrder = FO_1_3_2_4;
    engineConfiguration->injectionMode = IM_SEQUENTIAL;

#if HW_PROTEUS && EFI_PROD_CODE
    setProteusEtbIO();
  engineConfiguration->triggerInputPins[0] = PROTEUS_VR_1;
  engineConfiguration->camInputs[0] = PROTEUS_DIGITAL_1;
  engineConfiguration->camInputs[1] = PROTEUS_DIGITAL_2;
  engineConfiguration->camInputs[2] = PROTEUS_DIGITAL_3;
  engineConfiguration->camInputs[3] = PROTEUS_DIGITAL_4;


    engineConfiguration->starterControlPin = Gpio::PROTEUS_LS_14;
    engineConfiguration->startStopButtonPin = PROTEUS_IN_AV_6_DIGITAL;
#endif // HW_PROTEUS

    engineConfiguration->tpsMin = convertVoltageTo10bitADC(0.68);
    engineConfiguration->tpsMax = convertVoltageTo10bitADC(3.96);
  engineConfiguration->tps1SecondaryMin = convertVoltageTo10bitADC(1.55);
  engineConfiguration->tps1SecondaryMax = convertVoltageTo10bitADC(4.17);

}

Referenced by applyEngineType().

Here is the call graph for this function:

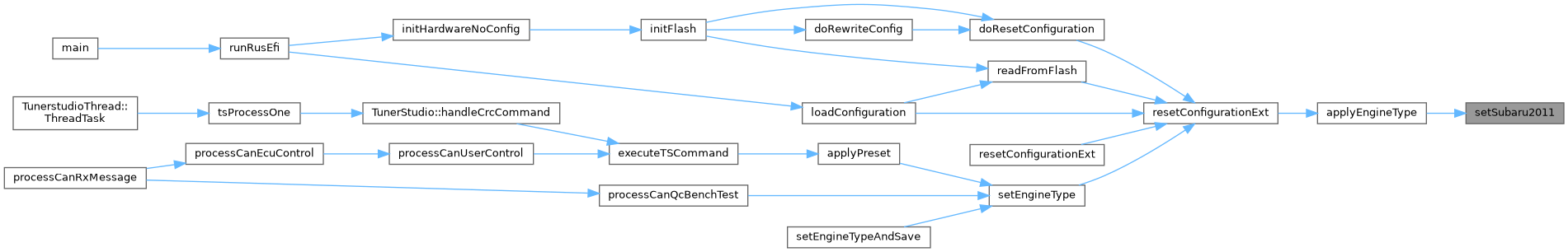

Here is the caller graph for this function:

setSubaruEG33Defaults()

void setSubaruEG33Defaults

(

)

Definition at line 51 of file subaru.cpp.

                             {
    setCamOperationMode();

    engineConfiguration->trigger.type = trigger_type_e::TT_SUBARU_SVX;

    engineConfiguration->cylindersCount = 6;
    setLeftRightBanksNeedBetterName();
    engineConfiguration->firingOrder = FO_1_6_3_2_5_4;

    engineConfiguration->ignitionMode = IM_INDIVIDUAL_COILS;
    engineConfiguration->crankingInjectionMode = IM_SIMULTANEOUS;
    engineConfiguration->injectionMode = IM_SEQUENTIAL;

    /* TODO: */
    engineConfiguration->globalTriggerAngleOffset = 114;    // the end of 19th tooth?

    engineConfiguration->fuelAlgorithm = engine_load_mode_e::LM_REAL_MAF;

    engineConfiguration->displacement = 3.30;
    engineConfiguration->injector.flow = 250;

    setTable(config->crankingCycleBaseFuel, 5);     // ???
    engineConfiguration->cranking.rpm = 400;

    engineConfiguration->rpmHardLimit = 6500;

    engineConfiguration->idleStepperReactionTime = 10;
    engineConfiguration->stepperDirectionPinMode = OM_INVERTED;
    engineConfiguration->useLinearCltSensor = true;

    engineConfiguration->canWriteEnabled = false;

    /* Fully closed - 0.9V, fully opened - 4.7 (?) */
    engineConfiguration->tpsMin = convertVoltageTo10bitADC(0.9);
    engineConfiguration->tpsMax = convertVoltageTo10bitADC(4.7);
    engineConfiguration->tpsErrorDetectionTooLow = -10; // -10% open
    engineConfiguration->tpsErrorDetectionTooHigh = 110; // 110% open

    engineConfiguration->mapMinBufferLength = 4;

    /* idle configuration */
    setTable(config->cltIdleCorrTable, 30.0);

    engineConfiguration->maxAcRpm = 3000;

    /* Check this */
    engineConfiguration->tachPulsePerRev = 2;
}

Referenced by applyEngineType().

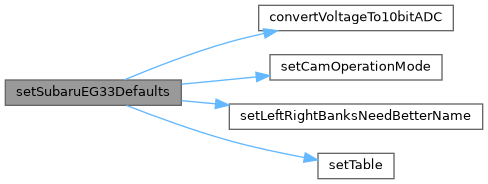

Here is the call graph for this function:

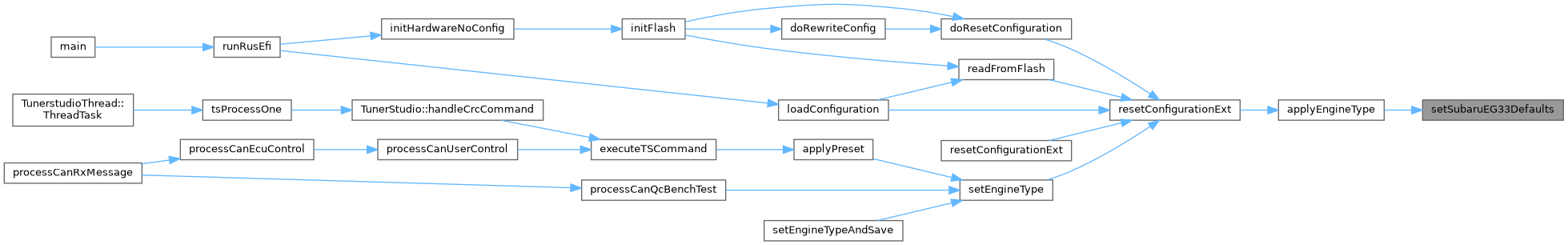

Here is the caller graph for this function:

setSubaruEJ18_MRE()

void setSubaruEJ18_MRE

(

)

MRE_SUBARU_EJ18 set engine_type 37

Definition at line 23 of file subaru.cpp.

                         {
    engineConfiguration->trigger.type = trigger_type_e::TT_VVT_SUBARU_7_WITHOUT_6;


//  engineConfiguration->isDoubleSolenoidIdle = true;

    engineConfiguration->displacement = 1.8;
    strcpy(engineConfiguration->engineMake, ENGINE_MAKE_SUBARU);
    strcpy(engineConfiguration->engineCode, "EJ18");

    engineConfiguration->firingOrder = FO_1_3_2_4;
    engineConfiguration->injectionMode = IM_SEQUENTIAL;
    engineConfiguration->ignitionMode = IM_WASTED_SPARK;

#if (BOARD_TLE8888_COUNT > 0)
    // Gpio::TLE8888_PIN_23: "33 - GP Out 3"
    engineConfiguration->malfunctionIndicatorPin = MRE_GPOUT_3;
#endif /* BOARD_TLE8888_COUNT */

    // this car has high-side main relay WOW so we have to hard wire it to ignition switch


}

Referenced by applyEngineType().

Here is the caller graph for this function:

setSubaruEJ20GDefaults()

void setSubaruEJ20GDefaults

(

)

Go to the source code of this file.
