vw_b6.cpp File Reference

Functions
static void	commonPassatB6 ()
void	setProteusVwPassatB6 ()
void	setMreVwPassatB6 ()

Variables
static const float	hardCodedFreqBins []
static const float	hardCodedGperSValues []

Function Documentation

commonPassatB6()

static void commonPassatB6 ( )

inlinestatic

PSS-140

Definition at line 18 of file vw_b6.cpp.

                                    {
    setCrankOperationMode();
    engineConfiguration->trigger.type = trigger_type_e::TT_TOOTHED_WHEEL_60_2;
    engineConfiguration->vvtMode[0] = VVT_BOSCH_QUICK_START;
    engineConfiguration->map.sensor.type = MT_BOSCH_2_5;

    engineConfiguration->globalTriggerAngleOffset = 90;

    engineConfiguration->idlePidRpmDeadZone = 500;
    engineConfiguration->idleMode = idle_mode_e::IM_AUTO;

    setInline4();

    engineConfiguration->disableEtbWhenEngineStopped = true;


    for (int i = 4; i < MAX_CYLINDER_COUNT;i++) {
        engineConfiguration->injectionPins[i] = Gpio::Unassigned;
        engineConfiguration->ignitionPins[i] = Gpio::Unassigned;
    }

    // Injectors flow 1214 cc/min at 100 bar pressure
    engineConfiguration->injector.flow = 1214;
    setGDIFueling();

    strcpy(engineConfiguration->engineMake, ENGINE_MAKE_VAG);
    strcpy(engineConfiguration->engineCode, "BPY");
    strcpy(engineConfiguration->vehicleName, "test");

    setPPSCalibration(0.36, 2.13, 0.73, 4.30);

    engineConfiguration->invertCamVVTSignal = true;

    /**
     * PSS-140
     */
    // todo: calibration
    engineConfiguration->highPressureFuel.v1 = 0.5; /* volts */;
    engineConfiguration->highPressureFuel.value1 = 0;
    engineConfiguration->highPressureFuel.v2 = 4.5; /* volts */;
    engineConfiguration->highPressureFuel.value2 = BAR2KPA(140);

    engineConfiguration->lowPressureFuel.v1 = 0.5; /* volts */;
    engineConfiguration->lowPressureFuel.value1 = PSI2KPA(0);
    engineConfiguration->lowPressureFuel.v2 = 4.5; /* volts */;
    // todo: what's the proper calibration of this Bosch sensor? is it really 200psi?
    engineConfiguration->lowPressureFuel.value2 = PSI2KPA(200);

    gppwm_channel *lowPressureFuelPumpControl = &engineConfiguration->gppwm[1];
    strcpy(engineConfiguration->gpPwmNote[1], "LPFP");
    lowPressureFuelPumpControl->pwmFrequency = 20;
    lowPressureFuelPumpControl->loadAxis = GPPWM_FuelLoad;
    lowPressureFuelPumpControl->dutyIfError = 50;
    setTable(lowPressureFuelPumpControl->table, (uint8_t)50);

    gppwm_channel *coolantControl = &engineConfiguration->gppwm[0];
    strcpy(engineConfiguration->gpPwmNote[0], "Rad Fan");
    coolantControl->loadAxis = GPPWM_Clt;

    coolantControl->pwmFrequency = 25;
    coolantControl->loadAxis = GPPWM_FuelLoad;
    // Volkswage wants 10% for fan to be OFF, between pull-up and low side control we need to invert that value
    // todo system lua for duty driven by CLT? (3, Gpio::E0, "0.15 90 coolant 120 min max 90 - 30 / 0.8 * +", 25);
    int value = 100 - 10;
    coolantControl->dutyIfError = value;
    setTable(coolantControl->table, (uint8_t)value);
    // for now I just want to stop radiator whine
    // todo: enable cooling!
    /*
    for (int load = 0; load < GPPWM_LOAD_COUNT; load++) {
        for (int r = 0; r < GPPWM_RPM_COUNT; r++) {
            engineConfiguration->gppwm[0].table[load][r] = value;
        }
    }
*/

    setTable(config->veTable, 55);
#if EFI_ELECTRONIC_THROTTLE_BODY
    setBoschVAGETB();
#endif //EFI_ELECTRONIC_THROTTLE_BODY

    // random number just to take position away from zero
    engineConfiguration->vvtOffsets[0] = 180;

    // https://rusefi.com/forum/viewtopic.php?p=38235#p38235
    engineConfiguration->injector.flow = 1200;

    engineConfiguration->idle.solenoidPin = Gpio::Unassigned;
    engineConfiguration->fanPin = Gpio::Unassigned;
}

Referenced by setMreVwPassatB6(), and setProteusVwPassatB6().

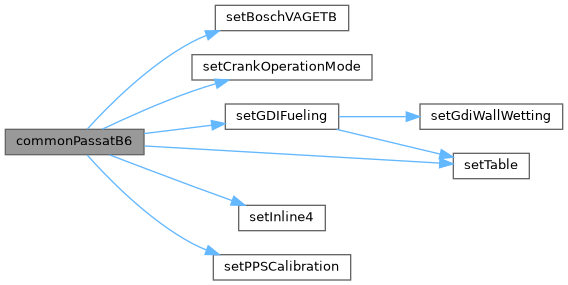

Here is the call graph for this function:

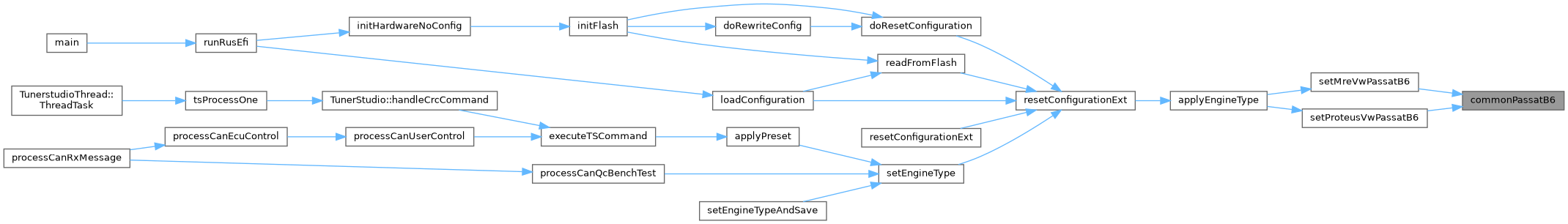

Here is the caller graph for this function:

setMreVwPassatB6()

void setMreVwPassatB6

(

)

set engine_type 62 VW_B6 has to be microRusEFI 0.5.2

Definition at line 188 of file vw_b6.cpp.

                        {
#if HW_MICRO_RUSEFI
    commonPassatB6();

//  engineConfiguration->afr.hwChannel = MRE_IN_ANALOG_VOLT_10;

    engineConfiguration->tps1_2AdcChannel = MRE_IN_ANALOG_VOLT_9;



    // EFI_ADC_7: "31 - AN volt 3" - PA7
    // 36 - AN volt 8
    setPPSInputs(MRE_IN_ANALOG_VOLT_3, MRE_IN_ANALOG_VOLT_8);

    // "26 - AN volt 2"
    engineConfiguration->highPressureFuel.hwChannel = MRE_IN_ANALOG_VOLT_2;


    // "19 - AN volt 4"
    engineConfiguration->lowPressureFuel.hwChannel = EFI_ADC_12;

    engineConfiguration->isSdCardEnabled = false;

    engineConfiguration->mc33816spiDevice = SPI_DEVICE_3;
    // RED
    engineConfiguration->spi3mosiPin = Gpio::C12;
    // YELLOW
    engineConfiguration->spi3misoPin = Gpio::C11;
    // BROWN
    engineConfiguration->spi3sckPin = Gpio::C10;
    engineConfiguration->sdCardCsPin = Gpio::Unassigned;
    engineConfiguration->is_enabled_spi_3 = true;


    // J8 orange
    engineConfiguration->mc33816_cs = Gpio::B8;
    // J8 Grey
    engineConfiguration->mc33816_rstb = Gpio::A15;
    // J8 Dark BLUE
    engineConfiguration->mc33816_driven = Gpio::B9;
    // J9 violet
    engineConfiguration->mc33816_flag0 = Gpio::C13;

    // J10 Dark BLUE
    engineConfiguration->injectionPins[0] = Gpio::E6;
    // J11 green
    engineConfiguration->injectionPins[1] = Gpio::E5;
    // J18 grey
    engineConfiguration->injectionPins[2] = Gpio::B7;
    // J6 white
    engineConfiguration->injectionPins[3] = Gpio::E0;


    gppwm_channel *lowPressureFuelPumpControl = &engineConfiguration->gppwm[1];

    // "42 - Injector 4", somehow GP4 did not work? not enough current? not happy with diode?
    lowPressureFuelPumpControl->pin = MRE_INJ_4;


    gppwm_channel *coolantControl = &engineConfiguration->gppwm[0];

    coolantControl->pin = MRE_LS_2;
    // "7 - Lowside 1"
    //engineConfiguration->hpfpValvePin = MRE_LS_1;
    engineConfiguration->hpfpValvePin = Gpio::B10; // AUX J13


#endif /* HW_MICRO_RUSEFI */
}

Referenced by applyEngineType().

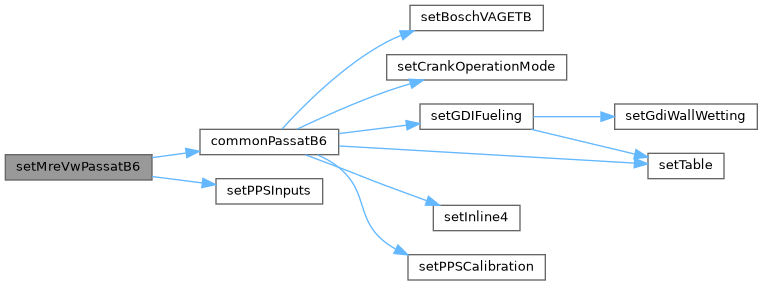

Here is the call graph for this function:

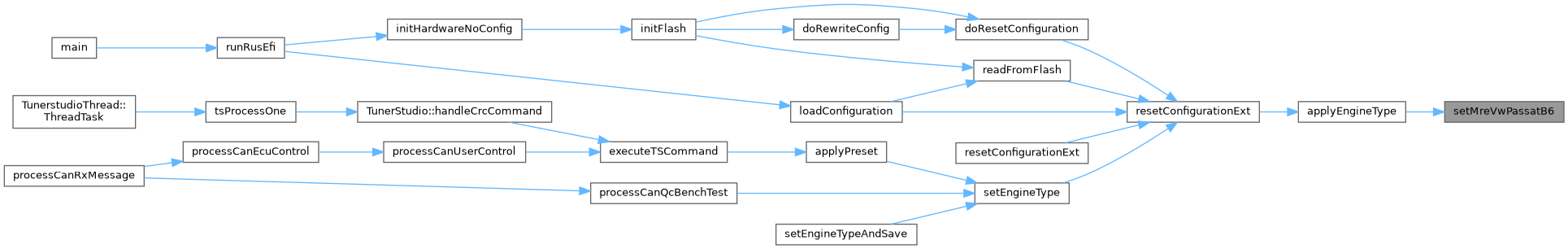

Here is the caller graph for this function:

setProteusVwPassatB6()

void setProteusVwPassatB6

(

)

set engine_type 39

Definition at line 134 of file vw_b6.cpp.

                            {
#if HW_PROTEUS
    static_assert(sizeof(hardCodedFreqBins) == sizeof(hardCodedGperSValues));
#if SCRIPT_CURVE_16 == 16
    {
        size_t mi = 0;
        for (; mi < efi::size(hardCodedFreqBins); mi++) {
            config->scriptCurve1Bins[mi] = hardCodedFreqBins[mi];
            config->scriptCurve1[mi] = hardCodedGperSValues[mi];
        }

        for (; mi < SCRIPT_CURVE_16; mi++) {
            config->scriptCurve1Bins[mi] = 3650 + mi;
            config->scriptCurve1[mi] = 4000;
        }
    }
    strcpy(engineConfiguration->scriptCurveName[0], "MAFcurve");
#endif

    commonPassatB6();
    engineConfiguration->triggerInputPins[0] = PROTEUS_VR_1;
    engineConfiguration->camInputs[0] = PROTEUS_DIGITAL_2;

    engineConfiguration->auxSpeedSensorInputPin[0] = PROTEUS_DIGITAL_5;

    engineConfiguration->lowPressureFuel.hwChannel = PROTEUS_IN_ANALOG_VOLT_5;
    engineConfiguration->highPressureFuel.hwChannel = PROTEUS_IN_ANALOG_VOLT_4;

    gppwm_channel *coolantControl = &engineConfiguration->gppwm[0];
    coolantControl->pin = Gpio::PROTEUS_LS_5;

    engineConfiguration->mainRelayPin = Gpio::PROTEUS_LS_6;

    gppwm_channel *lowPressureFuelPumpControl = &engineConfiguration->gppwm[1];
    lowPressureFuelPumpControl->pin = Gpio::PROTEUS_LS_7;

    //engineConfiguration->boostControlPin = Gpio::PROTEUS_LS_8;
    engineConfiguration->vvtPins[0] = Gpio::PROTEUS_LS_9;
    engineConfiguration->hpfpValvePin = Gpio::PROTEUS_LS_15;

    setProteusEtbIO();

#if EFI_PROD_CODE
    #include "vw_b6.lua"
#endif

#endif // HW_PROTEUS
}

Referenced by applyEngineType().

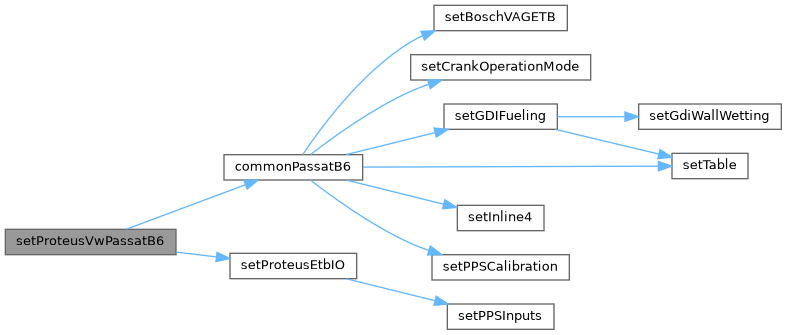

Here is the call graph for this function:

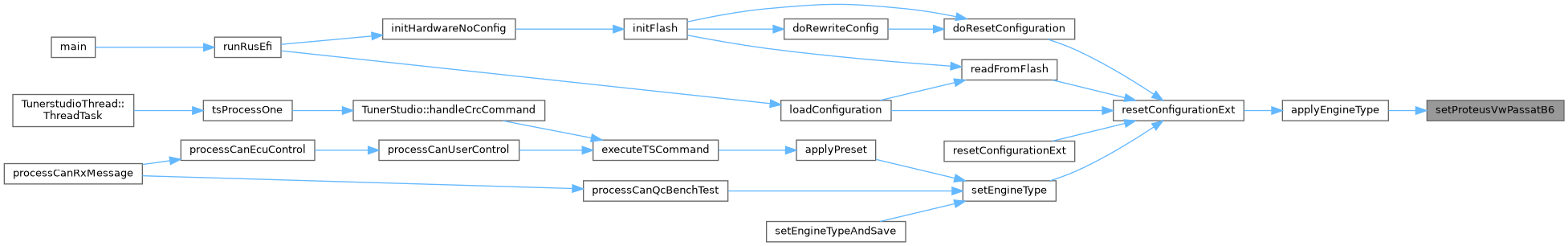

Here is the caller graph for this function:

Variable Documentation

hardCodedFreqBins

const float hardCodedFreqBins[]

static

Initial value:

= {139,
        152,
        180,
        217,
        280,
        300,
        365}

Definition at line 112 of file vw_b6.cpp.

                                         {139,
        152,
        180,
        217,
        280,
        300,
        365};

Referenced by setProteusVwPassatB6().

hardCodedGperSValues

const float hardCodedGperSValues[]

static

Initial value:

{
        3.58,
        4.5,
        6.7,
        11,
        22,
        25,
        40
}

Definition at line 121 of file vw_b6.cpp.

                                          {
        3.58,
        4.5,
        6.7,
        11,
        22,
        25,
        40
};

Referenced by setProteusVwPassatB6().

Go to the source code of this file.
