board_configuration.cpp File Reference

Functions
static void	setInjectorPins ()
static void	setIgnitionPins ()
static void	setupDefaultSensorInputs ()
static void	alphax_silver_revA_boardConfigOverrides ()
static void	alphax_silver_revA_boardDefaultConfiguration ()
static void	board_init_ext_gpios ()
static void	alphax_silver_revA_boardInitHardware ()
	Board-specific initialization code.
static void	customBoardOnConfigurationChange (engine_configuration_s *)
int	getBoardMetaOutputsCount ()
int	getBoardMetaLowSideOutputsCount ()
Gpio *	getBoardMetaOutputs ()
void	setup_custom_board_overrides ()

Variables
static OutputPin	alphaTempPullUp
static OutputPin	alphaTachSelPullUp
static OutputPin	alphaHall1PullUp
static OutputPin	alphaHall2PullUp
static OutputPin	alphaHall3PullUp
static OutputPin	alphaHall4PullUp
static const tle9104_config	tle9104_cfg [BOARD_TLE9104_COUNT]
static Gpio	OUTPUTS []

Function Documentation

alphax_silver_revA_boardConfigOverrides()

static void alphax_silver_revA_boardConfigOverrides ( )

static

Definition at line 44 of file board_configuration.cpp.

                                                      {
    /* Force PWR_EN as TLE9104s are powered from +5VA */
    setHellenMegaEnPin();

    hellenMegaModule();
    setHellenCan();

    /* Two TLE9104 */
    enableHellenSpi3();
    engineConfiguration->vrThreshold[0].pin = Gpio::MM100_OUT_PWM2;
}

Referenced by setup_custom_board_overrides().

Here is the call graph for this function:

Here is the caller graph for this function:

alphax_silver_revA_boardDefaultConfiguration()

static void alphax_silver_revA_boardDefaultConfiguration ( )

static

Definition at line 56 of file board_configuration.cpp.

                                                           {
    setInjectorPins();
    setIgnitionPins();
    setHellenMMbaro();
    setupDefaultSensorInputs();
    setInline4();
}

Referenced by setup_custom_board_overrides().

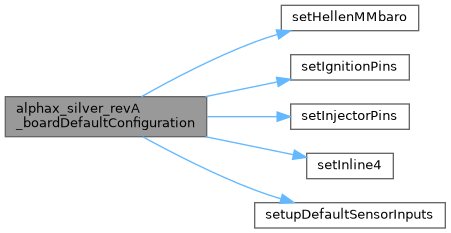

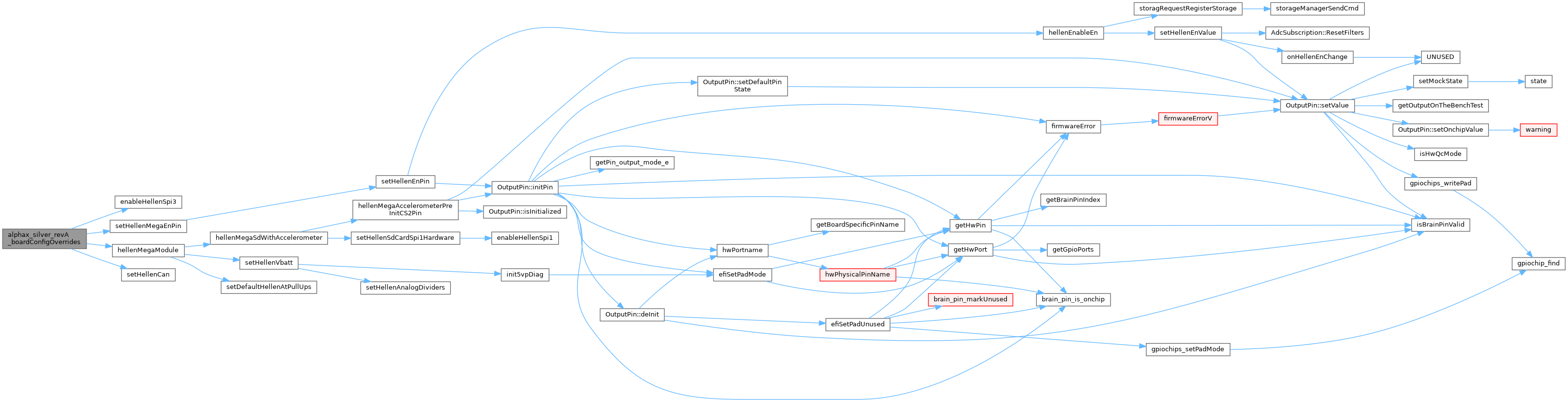

Here is the call graph for this function:

Here is the caller graph for this function:

alphax_silver_revA_boardInitHardware()

static void alphax_silver_revA_boardInitHardware ( )

static

Board-specific initialization code.

Definition at line 167 of file board_configuration.cpp.

                                                   {
    alphaTempPullUp.initPin("a-temp", Gpio::MM100_IGN8); //  E6
    alphaTachSelPullUp.initPin("Tach PullUp", Gpio::MM100_OUT_PWM1);
    alphaHall1PullUp.initPin("hall1 PullUp", Gpio::MM100_OUT_PWM3);
    alphaHall2PullUp.initPin("hall2 PullUp", Gpio::MM100_OUT_PWM4);
    alphaHall3PullUp.initPin("hall3 PullUp", Gpio::MM100_OUT_PWM5);
    alphaHall4PullUp.initPin("hall4 PullUp", Gpio::MM100_OUT_PWM6);
    board_init_ext_gpios();
}

Referenced by setup_custom_board_overrides().

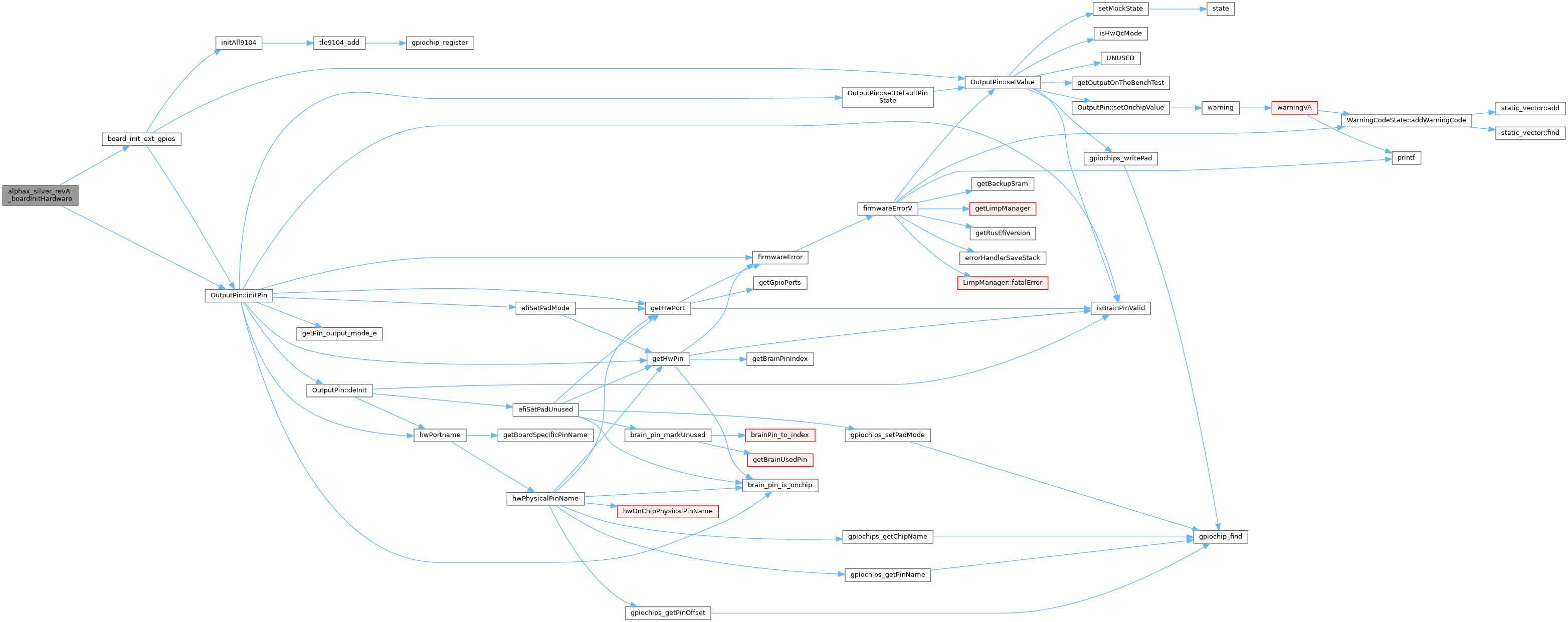

Here is the call graph for this function:

Here is the caller graph for this function:

board_init_ext_gpios()

static void board_init_ext_gpios ( )

static

Definition at line 138 of file board_configuration.cpp.

                                   {
  {
    /* Waste of RAM, switch to palSetPadMode() and palSetPort() */
    static OutputPin TleCs0;
      TleCs0.initPin("TLE9104 CS0", Gpio::A15);
      TleCs0.setValue(1);
    }
    {
    static OutputPin TleCs1;
      TleCs1.initPin("TLE9104 CS1", Gpio::B12);
      TleCs1.setValue(1);
    }

    {
      static OutputPin TleReset;
      TleReset.initPin("TLE9104 Reset", Gpio::B14);
      TleReset.setValue(1);

      static OutputPin TleEn;
      TleEn.initPin("TLE9104 En", Gpio::B15);
      TleEn.setValue(1);
    }

  initAll9104(tle9104_cfg);
}

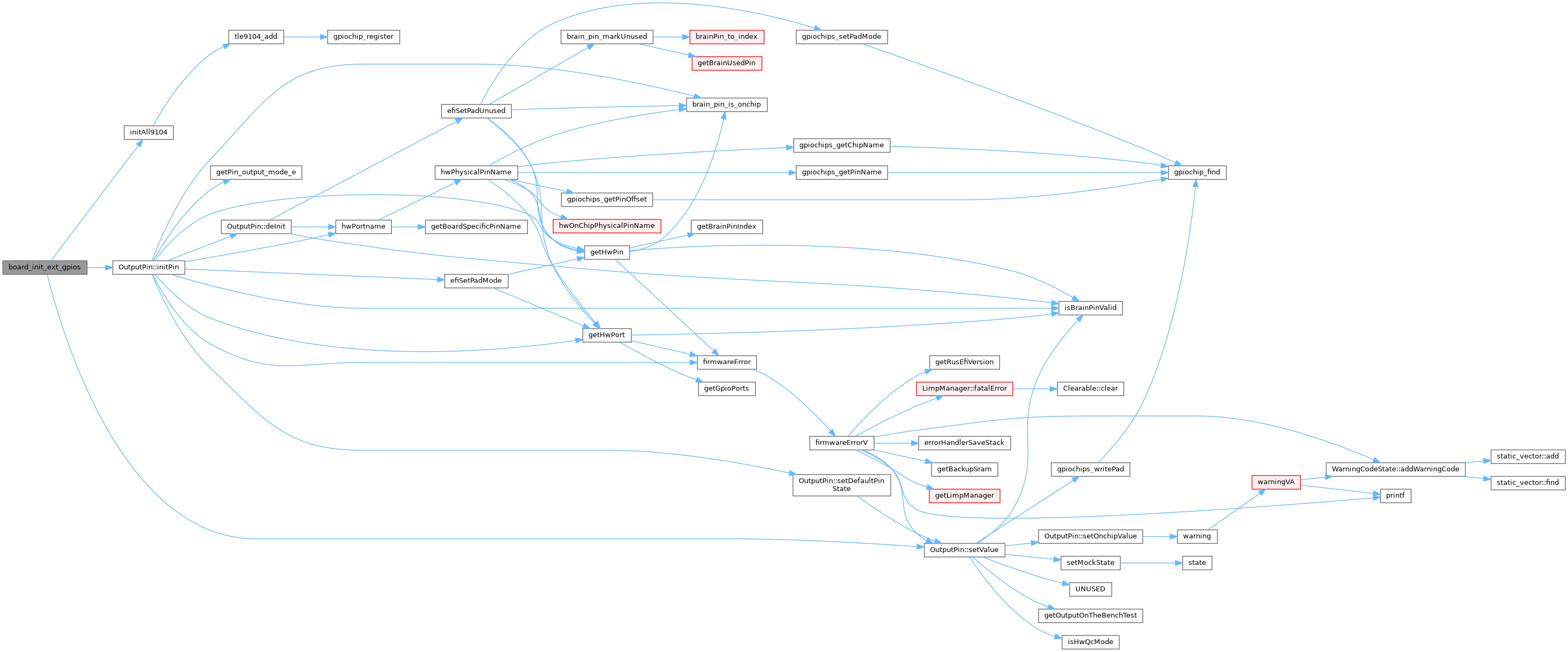

Here is the call graph for this function:

customBoardOnConfigurationChange()

static void customBoardOnConfigurationChange ( engine_configuration_s *  )

static

Definition at line 177 of file board_configuration.cpp.

                                                                         {
    alphaTempPullUp.setValue(engineConfiguration->boardUseTempPullUp);
    alphaTachSelPullUp.setValue(engineConfiguration->boardSelTachPullUp);
    alphaHall1PullUp.setValue(engineConfiguration->boardEnHall1PullUp);
    alphaHall2PullUp.setValue(engineConfiguration->boardEnHall2PullUp);
    alphaHall3PullUp.setValue(engineConfiguration->boardEnHall3PullUp);
    alphaHall4PullUp.setValue(engineConfiguration->boardEnHall4PullUp);
}

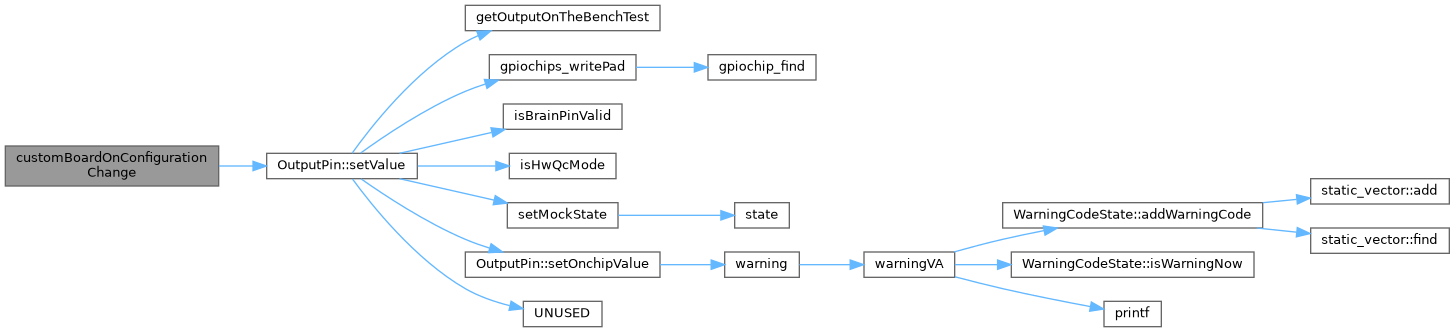

Here is the call graph for this function:

getBoardMetaLowSideOutputsCount()

int getBoardMetaLowSideOutputsCount

(

)

Definition at line 205 of file board_configuration.cpp.

                                      {
    return getBoardMetaOutputsCount() - 4;
}

Here is the call graph for this function:

getBoardMetaOutputs()

Gpio * getBoardMetaOutputs

(

)

Definition at line 209 of file board_configuration.cpp.

                            {
    return OUTPUTS;
}

getBoardMetaOutputsCount()

int getBoardMetaOutputsCount

(

)

Definition at line 201 of file board_configuration.cpp.

                               {
    return efi::size(OUTPUTS);
}

setIgnitionPins()

static void setIgnitionPins ( )

static

Definition at line 24 of file board_configuration.cpp.

                              {
    engineConfiguration->ignitionPins[0] = Gpio::MM100_IGN1;
    engineConfiguration->ignitionPins[1] = Gpio::MM100_IGN2;
    engineConfiguration->ignitionPins[2] = Gpio::MM100_IGN3;
    engineConfiguration->ignitionPins[3] = Gpio::MM100_IGN4;
}

setInjectorPins()

static void setInjectorPins ( )

static

Definition at line 17 of file board_configuration.cpp.

                              {
    engineConfiguration->injectionPins[0] = Gpio::TLE9104_0_OUT_0;
    engineConfiguration->injectionPins[1] = Gpio::TLE9104_0_OUT_1;
    engineConfiguration->injectionPins[2] = Gpio::TLE9104_0_OUT_2;
    engineConfiguration->injectionPins[3] = Gpio::TLE9104_0_OUT_3;
}

setup_custom_board_overrides()

void setup_custom_board_overrides

(

)

Definition at line 213 of file board_configuration.cpp.

                                    {
    custom_board_InitHardware = alphax_silver_revA_boardInitHardware;
    custom_board_DefaultConfiguration = alphax_silver_revA_boardDefaultConfiguration;
    custom_board_ConfigOverrides = alphax_silver_revA_boardConfigOverrides;

    custom_board_OnConfigurationChange = customBoardOnConfigurationChange;
}

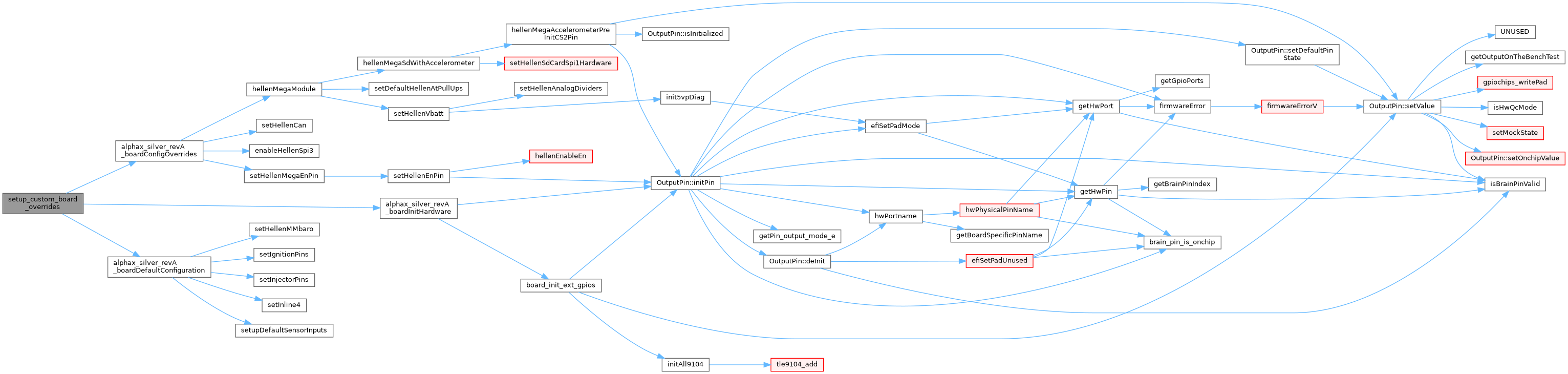

Here is the call graph for this function:

setupDefaultSensorInputs()

static void setupDefaultSensorInputs ( )

static

Definition at line 31 of file board_configuration.cpp.

                                       {
    engineConfiguration->tps1_1AdcChannel = MM100_IN_TPS_ANALOG;

    engineConfiguration->boardUseTempPullUp = true;

//  engineConfiguration->map.sensor.hwChannel = H144_IN_MAP1; // external MAP
  engineConfiguration->map.sensor.hwChannel = H144_IN_MAP2; // On-board MAP
  engineConfiguration->map.sensor.type = MT_MPXH6400;

    engineConfiguration->clt.adcChannel = MM100_IN_CLT_ANALOG;
    engineConfiguration->iat.adcChannel = MM100_IN_IAT_ANALOG;
}

Variable Documentation

alphaHall1PullUp

OutputPin alphaHall1PullUp

static

Definition at line 12 of file board_configuration.cpp.

alphaHall2PullUp

OutputPin alphaHall2PullUp

static

Definition at line 13 of file board_configuration.cpp.

alphaHall3PullUp

OutputPin alphaHall3PullUp

static

Definition at line 14 of file board_configuration.cpp.

alphaHall4PullUp

OutputPin alphaHall4PullUp

static

Definition at line 15 of file board_configuration.cpp.

alphaTachSelPullUp

OutputPin alphaTachSelPullUp

static

Definition at line 11 of file board_configuration.cpp.

alphaTempPullUp

OutputPin alphaTempPullUp

static

Definition at line 10 of file board_configuration.cpp.

OUTPUTS

Gpio OUTPUTS[]

static

Initial value:

= {
    Gpio::TLE9104_0_OUT_3,
    Gpio::TLE9104_0_OUT_2,
    Gpio::TLE9104_0_OUT_1,
    Gpio::TLE9104_0_OUT_0,
    Gpio::TLE9104_1_OUT_1,
    Gpio::TLE9104_1_OUT_2,
    Gpio::TLE9104_1_OUT_3,
    Gpio::TLE9104_1_OUT_0,
    Gpio::MM100_IGN1,
    Gpio::MM100_IGN2,
    Gpio::MM100_IGN3,
    Gpio::MM100_IGN4,
}

Definition at line 186 of file board_configuration.cpp.

                        {
    Gpio::TLE9104_0_OUT_3, // 1A - Injector 4
    Gpio::TLE9104_0_OUT_2, // 2A - Injector 3
    Gpio::TLE9104_0_OUT_1, // 3A - Injector 2
    Gpio::TLE9104_0_OUT_0, // 4A - Injector 1
    Gpio::TLE9104_1_OUT_1, // 5A Fuel Pump Relay
    Gpio::TLE9104_1_OUT_2, // 6A Idle Output
    Gpio::TLE9104_1_OUT_3, // 28A Fan Relay
    Gpio::TLE9104_1_OUT_0, // 14A Tach Output
    Gpio::MM100_IGN1,
    Gpio::MM100_IGN2,
    Gpio::MM100_IGN3,
    Gpio::MM100_IGN4,
};

tle9104_cfg

const tle9104_config tle9104_cfg[BOARD_TLE9104_COUNT]

static

Definition at line 71 of file board_configuration.cpp.

                                                               {
    {
        .spi_bus = &SPID3,
        .spi_config = {
            .circular = false,
#ifdef _CHIBIOS_RT_CONF_VER_6_1_
            .end_cb = nullptr,
#else
            .slave = false,
            .data_cb = nullptr,
            .error_cb = nullptr,
#endif
            .ssport = GPIOA,
            .sspad = 15,
            .cr1 =
                SPI_CR1_16BIT_MODE |
                SPI_CR1_SSM |
                SPI_CR1_SSI |
                ((3 << SPI_CR1_BR_Pos) & SPI_CR1_BR) |  // div = 16
                SPI_CR1_MSTR |
                SPI_CR1_CPHA |
                0,
            .cr2 = SPI_CR2_16BIT_MODE
        },
        .direct_io = {
            { .port = GPIOD, .pad = 3 },
            { .port = GPIOA, .pad = 9 },
            { .port = GPIOD, .pad = 11 },
            { .port = GPIOD, .pad = 10 }
        },
        .resn = Gpio::Unassigned, //Gpio::B14,
        .en   = Gpio::Unassigned //Gpio::B15
    },
    {
        .spi_bus = &SPID3,
        .spi_config = {
            .circular = false,
#ifdef _CHIBIOS_RT_CONF_VER_6_1_
            .end_cb = nullptr,
#else
            .slave = false,
            .data_cb = nullptr,
            .error_cb = nullptr,
#endif
            .ssport = GPIOB,
            .sspad = 12,
            .cr1 =
                SPI_CR1_16BIT_MODE |
                SPI_CR1_SSM |
                SPI_CR1_SSI |
                ((3 << SPI_CR1_BR_Pos) & SPI_CR1_BR) |  // div = 16
                SPI_CR1_MSTR |
                SPI_CR1_CPHA |
                0,
            .cr2 = SPI_CR2_16BIT_MODE
        },
        .direct_io = {
            { .port = GPIOA, .pad = 8 }, // tach
            { .port = GPIOD, .pad = 15 }, // pump relay
            { .port = GPIOD, .pad = 2 }, // idle valve
            { .port = GPIOD, .pad = 12 } // fan relay
        },
        .resn = Gpio::Unassigned, //Gpio::B14,
        .en   = Gpio::Unassigned //Gpio::B15
    }
};

Go to the source code of this file.
