board_configuration.cpp File Reference

Functions
static void	setInjectorPins ()
static void	setIgnitionPins ()
static void	setupDefaultSensorInputs ()
static void	super_uaefi_boardConfigOverrides ()
bool	validateBoardConfig ()
static void	setDefaultETBPins ()
static void	super_uaefi_boardDefaultConfiguration ()
	Board-specific configuration defaults.
int	getBoardMetaOutputsCount ()
int	getBoardMetaLowSideOutputsCount ()
Gpio *	getBoardMetaOutputs ()
int	getBoardMetaDcOutputsCount ()
void	setup_custom_board_overrides ()

Variables
static Gpio	OUTPUTS []

Function Documentation

getBoardMetaDcOutputsCount()

int getBoardMetaDcOutputsCount

(

)

Definition at line 164 of file board_configuration.cpp.

                                 {
    return 2;
}

getBoardMetaLowSideOutputsCount()

int getBoardMetaLowSideOutputsCount

(

)

Definition at line 156 of file board_configuration.cpp.

                                      {
  return getBoardMetaOutputsCount() - 7;
}

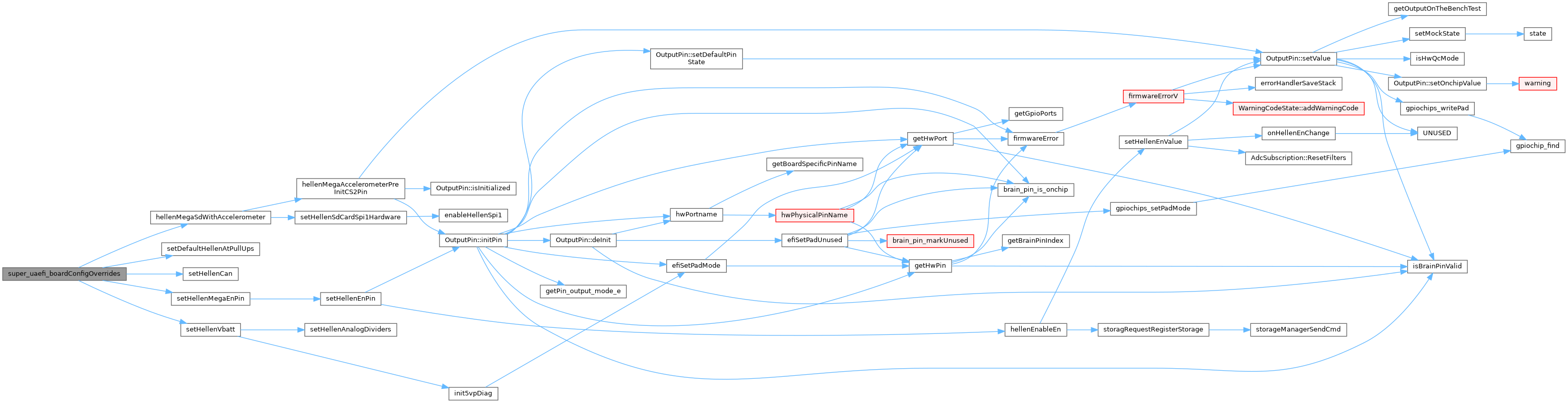

Here is the call graph for this function:

getBoardMetaOutputs()

Gpio * getBoardMetaOutputs

(

)

Definition at line 160 of file board_configuration.cpp.

                            {
    return OUTPUTS;
}

getBoardMetaOutputsCount()

int getBoardMetaOutputsCount

(

)

Definition at line 152 of file board_configuration.cpp.

                               {
    return efi::size(OUTPUTS);
}

setDefaultETBPins()

static void setDefaultETBPins ( )

static

Definition at line 67 of file board_configuration.cpp.

                                {
  // users would want to override those if using H-bridges for stepper idle control
  setupTLE9201IncludingStepper(/*PWM controlPin*/Gpio::MM100_OUT_PWM3, Gpio::MM100_OUT_PWM4, Gpio::MM100_SPI2_MISO);
  setupTLE9201IncludingStepper(/*PWM controlPin*/Gpio::MM100_OUT_PWM5, Gpio::MM100_SPI2_MOSI, Gpio::MM100_USB1ID, 1);
}

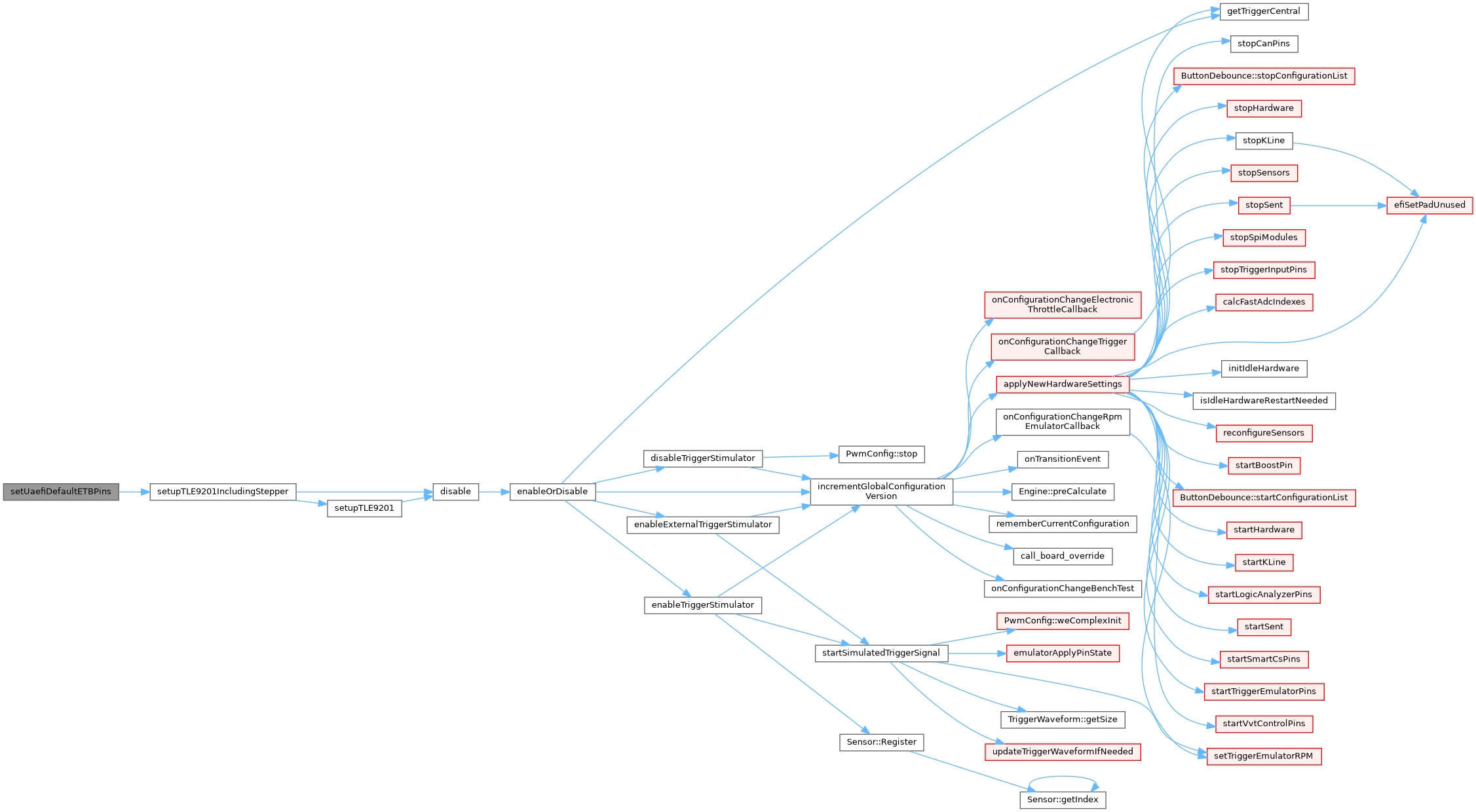

Here is the call graph for this function:

setIgnitionPins()

static void setIgnitionPins ( )

static

Definition at line 23 of file board_configuration.cpp.

                              {
    engineConfiguration->ignitionPins[0] = Gpio::MM100_IGN1;
    engineConfiguration->ignitionPins[1] = Gpio::MM100_IGN2;
    engineConfiguration->ignitionPins[2] = Gpio::MM100_IGN3;
    engineConfiguration->ignitionPins[3] = Gpio::MM100_IGN4;
    engineConfiguration->ignitionPins[4] = Gpio::MM100_IGN5;
    engineConfiguration->ignitionPins[5] = Gpio::MM100_IGN6;
}

setInjectorPins()

static void setInjectorPins ( )

static

See https://rusefi.com/s/super-uaefi

Author

Andrey Belomutskiy, (c) 2012-2023

Definition at line 14 of file board_configuration.cpp.

                              {
    engineConfiguration->injectionPins[0] = Gpio::MM100_INJ1;
    engineConfiguration->injectionPins[1] = Gpio::MM100_INJ2;
    engineConfiguration->injectionPins[2] = Gpio::MM100_INJ3;
    engineConfiguration->injectionPins[3] = Gpio::MM100_INJ4;
    engineConfiguration->injectionPins[4] = Gpio::MM100_INJ5;
    engineConfiguration->injectionPins[5] = Gpio::MM100_INJ6;
}

setup_custom_board_overrides()

void setup_custom_board_overrides

(

)

Definition at line 168 of file board_configuration.cpp.

                                    {
    custom_board_DefaultConfiguration = super_uaefi_boardDefaultConfiguration;
    custom_board_ConfigOverrides =  super_uaefi_boardConfigOverrides;
}

Here is the call graph for this function:

setupDefaultSensorInputs()

static void setupDefaultSensorInputs ( )

static

Definition at line 32 of file board_configuration.cpp.

                                       {
    engineConfiguration->tps1_1AdcChannel = MM100_IN_TPS_ANALOG;
    engineConfiguration->tps1_2AdcChannel = MM100_IN_AUX1_ANALOG;
//  engineConfiguration->map.sensor.hwChannel = PIN_D9;

    setPPSInputs(MM100_IN_PPS_ANALOG, MM100_IN_AUX2_ANALOG);

    engineConfiguration->clt.adcChannel = MM100_IN_CLT_ANALOG;
    engineConfiguration->iat.adcChannel = MM100_IN_IAT_ANALOG;

    engineConfiguration->triggerInputPins[0] = Gpio::MM100_UART8_TX; // VR2 max9924 is the safer default
    engineConfiguration->camInputs[0] = Gpio::MM100_IN_D1; // HALL1
    engineConfiguration->camInputs[1] = Gpio::MM100_IN_D2; // HALL2

  engineConfiguration->vehicleSpeedSensorInputPin = Gpio::MM100_IN_D3;
}

Here is the call graph for this function:

super_uaefi_boardConfigOverrides()

static void super_uaefi_boardConfigOverrides ( )

static

Definition at line 49 of file board_configuration.cpp.

                                               {
    setHellenMegaEnPin();
    setHellenVbatt();

    hellenMegaSdWithAccelerometer();

  engineConfiguration->vrThreshold[0].pin = Gpio::MM100_OUT_PWM6;

    setHellenCan();

    setDefaultHellenAtPullUps();

}

Referenced by setup_custom_board_overrides().

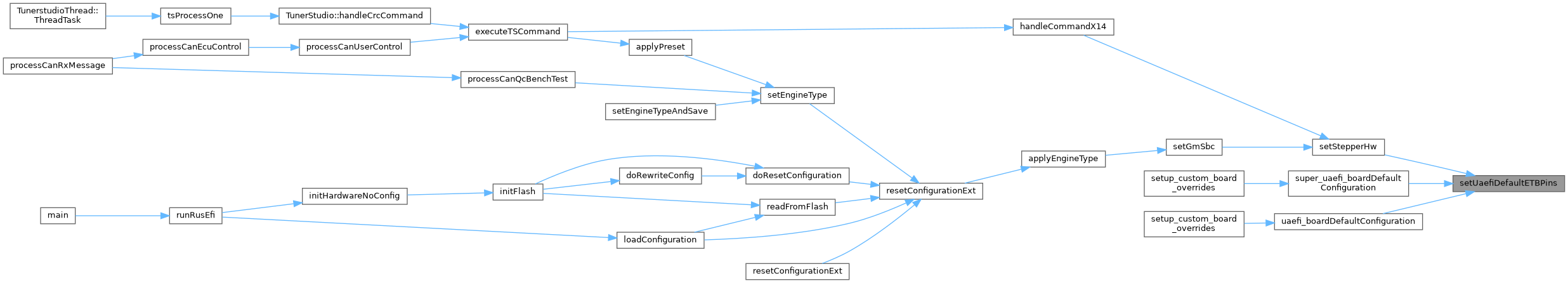

Here is the call graph for this function:

Here is the caller graph for this function:

super_uaefi_boardDefaultConfiguration()

static void super_uaefi_boardDefaultConfiguration ( )

static

Board-specific configuration defaults.

See also setDefaultEngineConfiguration

Definition at line 79 of file board_configuration.cpp.

                                                    {
    setInjectorPins();
    setIgnitionPins();
    setDefaultETBPins();

  setHellenMMbaro();

    engineConfiguration->displayLogicLevelsInEngineSniffer = true;
    engineConfiguration->isSdCardEnabled = true;

    engineConfiguration->enableSoftwareKnock = true;

    engineConfiguration->canTxPin = Gpio::MM100_CAN_TX;
    engineConfiguration->canRxPin = Gpio::MM100_CAN_RX;

  engineConfiguration->mainRelayPin = Gpio::MM100_IGN7;
    engineConfiguration->fanPin = Gpio::MM100_IGN8;
    engineConfiguration->fuelPumpPin = Gpio::MM100_OUT_PWM2;

    // SPI3 for on-board EGT
    engineConfiguration->is_enabled_spi_3 = true;
    // MOSI not needed, we have one-way communication here
    engineConfiguration->spi3misoPin = Gpio::C11;
    engineConfiguration->spi3sckPin = Gpio::C10;
    engineConfiguration->max31855_cs[0] = Gpio::A15;
    engineConfiguration->max31855spiDevice = SPI_DEVICE_3;

    // "required" hardware is done - set some reasonable defaults
    setupDefaultSensorInputs();
    engineConfiguration->enableVerboseCanTx = true;

    engineConfiguration->etbFunctions[0] = DC_Throttle1;

    // Some sensible defaults for other options
    setCrankOperationMode();

    setAlgorithm(engine_load_mode_e::LM_SPEED_DENSITY);

    engineConfiguration->injectorCompensationMode = ICM_FixedRailPressure;

#ifndef EFI_BOOTLOADER
    setCommonNTCSensor(&engineConfiguration->clt, HELLEN_DEFAULT_AT_PULLUP);
    setCommonNTCSensor(&engineConfiguration->iat, HELLEN_DEFAULT_AT_PULLUP);
#endif // EFI_BOOTLOADER

    setTPS1Calibration(100, 650);
    hellenWbo();
}

Referenced by setup_custom_board_overrides().

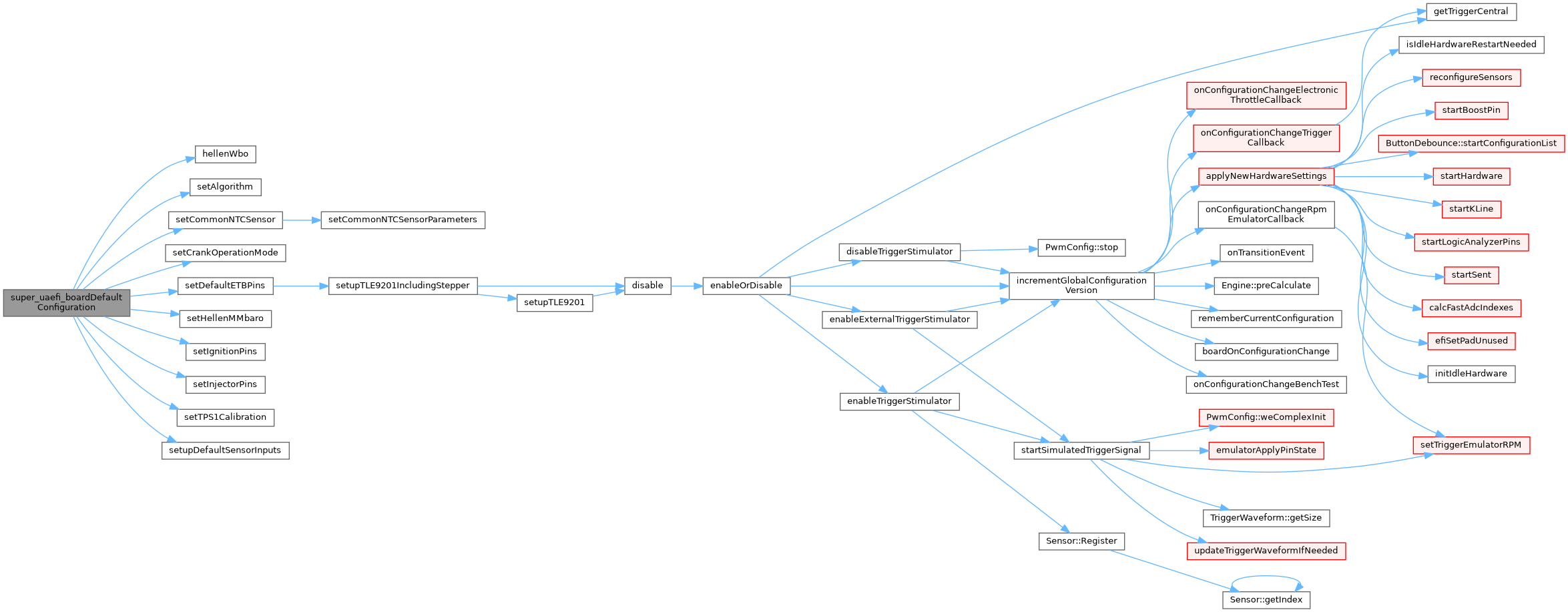

Here is the call graph for this function:

Here is the caller graph for this function:

validateBoardConfig()

bool validateBoardConfig

(

)

Definition at line 63 of file board_configuration.cpp.

                           {
  return true;
}

Variable Documentation

OUTPUTS

Gpio OUTPUTS[]

static

Initial value:

= {
    Gpio::MM100_INJ1,
    Gpio::MM100_INJ2,
    Gpio::MM100_INJ3,
    Gpio::MM100_INJ4,
    Gpio::MM100_INJ5,
    Gpio::MM100_INJ6,
    Gpio::MM100_SPI2_CS,
    Gpio::MM100_SPI2_SCK,
    Gpio::MM100_INJ7,
    Gpio::MM100_INJ8,
    Gpio::MM100_OUT_PWM1,
    Gpio::MM100_OUT_PWM2,
    Gpio::MM100_IGN7,
    Gpio::MM100_IGN8,
    Gpio::MM100_IGN1,
    Gpio::MM100_IGN2,
    Gpio::MM100_IGN3,
    Gpio::MM100_IGN4,
    Gpio::MM100_IGN5,
    Gpio::MM100_IGN6,
    Gpio::MM100_LED2_GREEN,
}

Definition at line 128 of file board_configuration.cpp.

                        {
    Gpio::MM100_INJ1, // 13B INJ_1
    Gpio::MM100_INJ2, // 12B INJ_2
    Gpio::MM100_INJ3, // 11B INJ_3
    Gpio::MM100_INJ4, // 10B INJ_4
    Gpio::MM100_INJ5, // 9B INJ_5
    Gpio::MM100_INJ6, // 8B INJ_6
    Gpio::MM100_SPI2_CS, // 19B INJ_7
    Gpio::MM100_SPI2_SCK, // 18B INJ_8
    Gpio::MM100_INJ7, // 20B LS1
    Gpio::MM100_INJ8, // 21B LS2
    Gpio::MM100_OUT_PWM1, // 22B LS3
    Gpio::MM100_OUT_PWM2, // 31C LS4
    Gpio::MM100_IGN7, // 30C LS5_HOT
    Gpio::MM100_IGN8, // 29C LS6_HOT
    Gpio::MM100_IGN1, // Coil 1
    Gpio::MM100_IGN2, // Coil 2
    Gpio::MM100_IGN3, // Coil 3
    Gpio::MM100_IGN4, // Coil 4
    Gpio::MM100_IGN5, // Coil 5
    Gpio::MM100_IGN6, // Coil 6
    Gpio::MM100_LED2_GREEN, // 20D High Side Output
};

Go to the source code of this file.
