test_engine.cpp File Reference

Detailed Description

set engine_type 26 VVT set engine_type 45

See also custom_engine.cpp

Date

Nov 14, 2014

Author

Andrey Belomutskiy, (c) 2012-2020

Definition in file test_engine.cpp.

Functions
void	setTestEngineBoschQuickStart ()
void	setTestEngineWithBoschQuickStartCam ()
void	setTestCamEngineConfiguration ()
void	setTestCrankEngineConfiguration ()
void	setTestDcWastegateConfiguration ()
void	setTestVVTEngineConfiguration ()
void	setTestEngineIssue366both ()
void	setTestEngineIssue366rise ()
void	setProteusAnalogPwmTest ()

Function Documentation

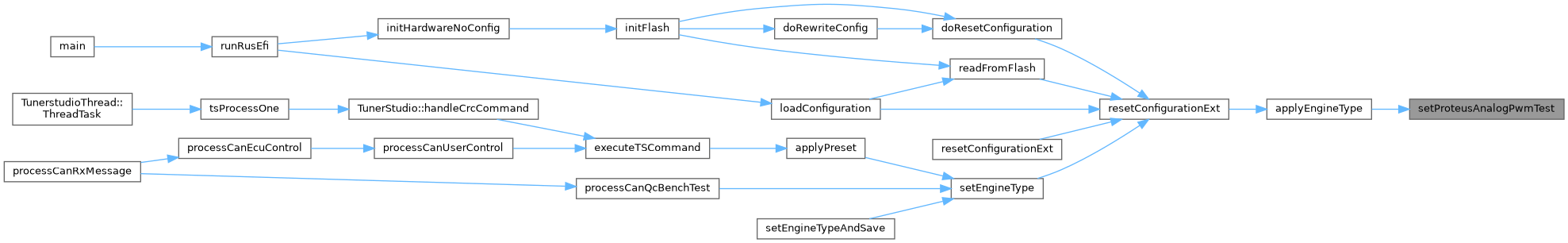

setProteusAnalogPwmTest()

void setProteusAnalogPwmTest

(

)

Definition at line 116 of file test_engine.cpp.

                               {
  engineConfiguration->camInputs[0] = Gpio::E0; // a random unused pin needed for happy HW CI. Huh, why do we have cam stimulation?!

    // lowest cpu trigger possible
    engineConfiguration->trigger.type = trigger_type_e::TT_HALF_MOON;

    // Disable trigger stim
    engineConfiguration->triggerSimulatorPins[0] = Gpio::Unassigned;
    engineConfiguration->triggerSimulatorPins[1] = Gpio::Unassigned;

    // The idle control pin is connected to the default TPS input, analog volt 2
    engineConfiguration->idle.solenoidPin = Gpio::PROTEUS_IGN_10;

    // 5893hz is coprime with the analog sample rate, 500hz, so hopefully we get less aliasing
    engineConfiguration->idle.solenoidFrequency = 5893;

    // Test range is 20% to 80%
    engineConfiguration->tpsMin = 200;
    engineConfiguration->tpsMax = 800;
}

Referenced by applyEngineType().

Here is the caller graph for this function:

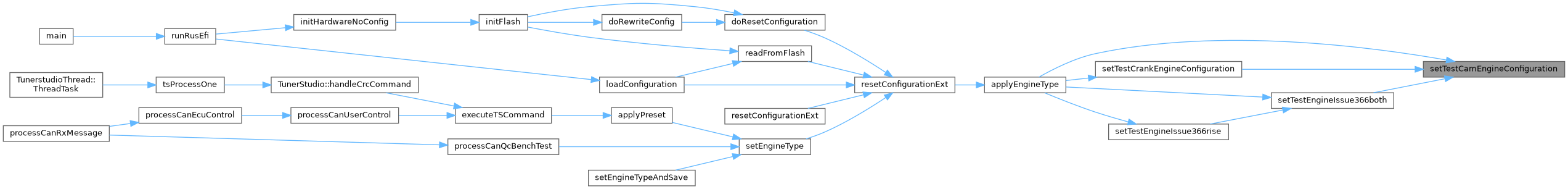

setTestCamEngineConfiguration()

void setTestCamEngineConfiguration

(

)

Definition at line 28 of file test_engine.cpp.

                                     {
    engineConfiguration->trigger.type = trigger_type_e::TT_ONE_PLUS_ONE;
    setCamOperationMode();

    engineConfiguration->mafAdcChannel = EFI_ADC_1;
    engineConfiguration->tps1_1AdcChannel = EFI_ADC_2;
    engineConfiguration->vbattAdcChannel = EFI_ADC_NONE;

    setWholeIatCorrTimingTable(0);

    // Many tests were written when the default target AFR was 14.0, so use that for tests by default.
    engineConfiguration->stoichRatioPrimary = 14.0f;

    engineConfiguration->ignitionMode = IM_ONE_COIL;
    setConstantDwell(3); // 50% duty cycle @ 5000 rpm

    engineConfiguration->malfunctionIndicatorPin = Gpio::Unassigned;

    engineConfiguration->ignitionPins[0] = Gpio::C7; // #1
    engineConfiguration->ignitionPins[1] = Gpio::Unassigned; // #2
    engineConfiguration->ignitionPins[2] = Gpio::Unassigned; // #3
    engineConfiguration->ignitionPins[3] = Gpio::Unassigned; // #4
    engineConfiguration->ignitionPins[4] = Gpio::Unassigned; // #5
    engineConfiguration->ignitionPins[5] = Gpio::Unassigned; // #6
}

Referenced by applyEngineType(), setTestCrankEngineConfiguration(), and setTestEngineIssue366both().

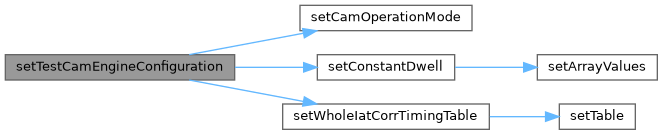

Here is the call graph for this function:

Here is the caller graph for this function:

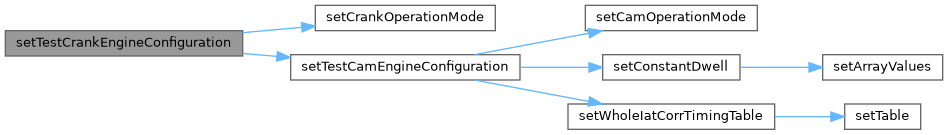

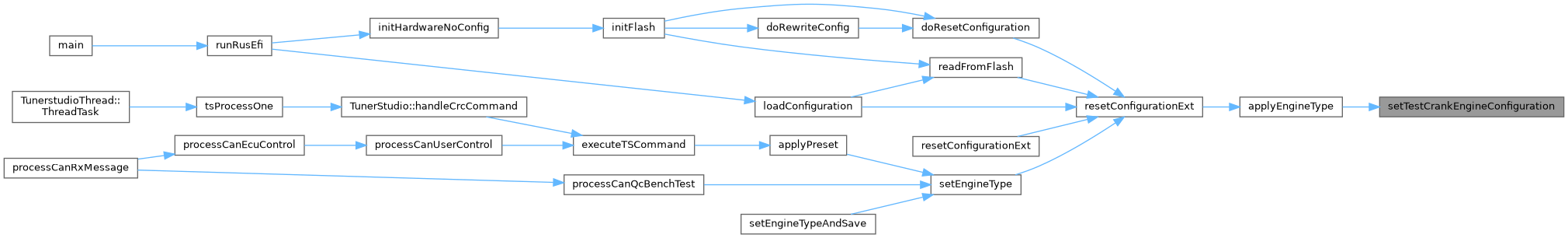

setTestCrankEngineConfiguration()

void setTestCrankEngineConfiguration

(

)

Definition at line 54 of file test_engine.cpp.

                                       {
    setTestCamEngineConfiguration();

    engineConfiguration->trigger.type = trigger_type_e::TT_HALF_MOON;

    setCrankOperationMode();
    // this is related to 'setDefaultBaseEngine' having 'skippedWheelOnCam = true' which is a weird fact by itself
    engineConfiguration->skippedWheelOnCam = false;
}

Referenced by applyEngineType().

Here is the call graph for this function:

Here is the caller graph for this function:

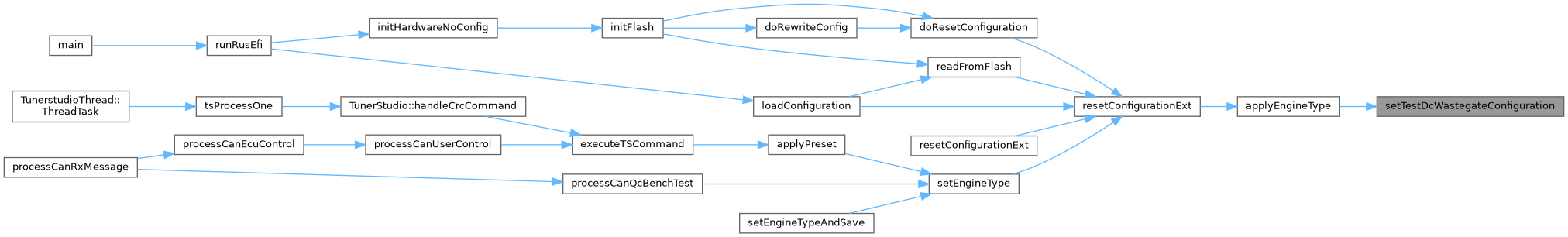

setTestDcWastegateConfiguration()

void setTestDcWastegateConfiguration

(

)

Definition at line 64 of file test_engine.cpp.

                                       {
    engineConfiguration->isBoostControlEnabled = 1;
    engineConfiguration->etbFunctions[0] = DC_Wastegate;
    setTable(config->boostTableOpenLoop, 50);
    engineConfiguration->tps1_1AdcChannel = EFI_ADC_1; // PA1

    // PWM pin
    engineConfiguration->etbIo[0].controlPin = Gpio::C0;
    // DIR pin
    engineConfiguration->etbIo[0].directionPin1 = Gpio::C1;
    // Disable pin
    engineConfiguration->etbIo[0].disablePin = Gpio::C2;
    // we only have pwm/dir, no dira/dirb
    engineConfiguration->etb_use_two_wires = false;
}

Referenced by applyEngineType().

Here is the call graph for this function:

Here is the caller graph for this function:

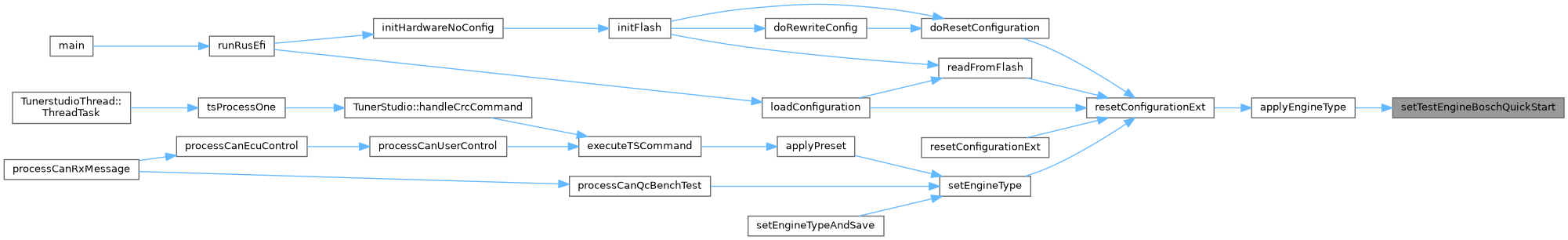

setTestEngineBoschQuickStart()

void setTestEngineBoschQuickStart

(

)

Definition at line 18 of file test_engine.cpp.

                                    {
    engineConfiguration->trigger.type = trigger_type_e::TT_VVT_BOSCH_QUICK_START;
}

Referenced by applyEngineType().

Here is the caller graph for this function:

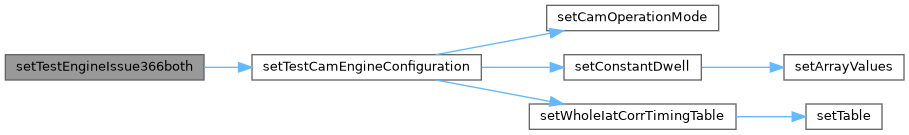

setTestEngineIssue366both()

void setTestEngineIssue366both

(

)

Definition at line 100 of file test_engine.cpp.

                                 {
    setTestCamEngineConfiguration();

    engineConfiguration->trigger.customTotalToothCount = 2;
    engineConfiguration->trigger.customSkippedToothCount = 1;

    engineConfiguration->trigger.type = trigger_type_e::TT_TOOTHED_WHEEL;
}

Referenced by applyEngineType(), and setTestEngineIssue366rise().

Here is the call graph for this function:

Here is the caller graph for this function:

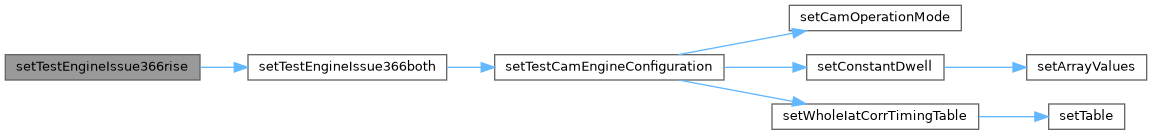

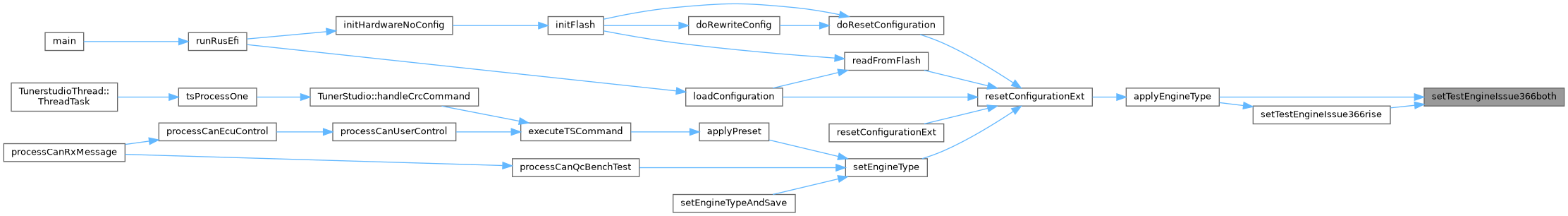

setTestEngineIssue366rise()

void setTestEngineIssue366rise

(

)

Definition at line 109 of file test_engine.cpp.

                                 {
    setTestEngineIssue366both();
}

Referenced by applyEngineType().

Here is the call graph for this function:

Here is the caller graph for this function:

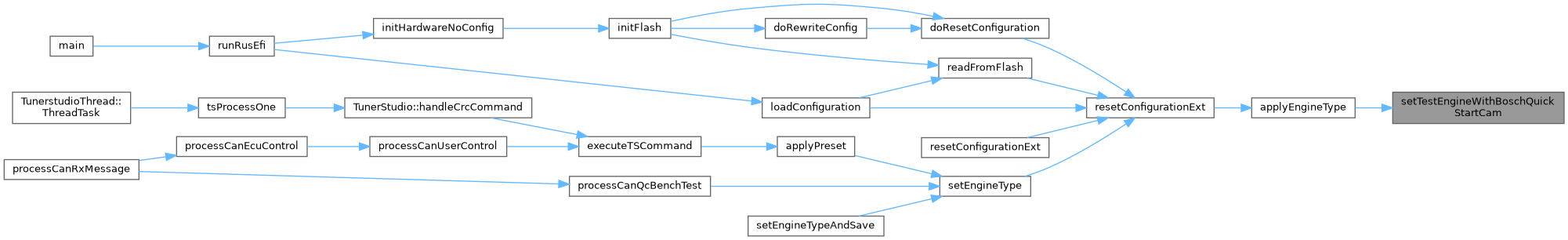

setTestEngineWithBoschQuickStartCam()

void setTestEngineWithBoschQuickStartCam

(

)

Definition at line 22 of file test_engine.cpp.

                                           {
  engineConfiguration->trigger.type = trigger_type_e::TT_HALF_MOON;
  engineConfiguration->vvtMode[0] = VVT_BOSCH_QUICK_START;
}

Referenced by applyEngineType().

Here is the caller graph for this function:

setTestVVTEngineConfiguration()

void setTestVVTEngineConfiguration

(

)

Definition at line 80 of file test_engine.cpp.

                                     {
    setCrankOperationMode();

    engineConfiguration->trigger.type = trigger_type_e::TT_TOOTHED_WHEEL;
    engineConfiguration->trigger.customTotalToothCount = 3;
    engineConfiguration->trigger.customSkippedToothCount = 1;

    // set algorithm 3
    setAlgorithm(engine_load_mode_e::LM_SPEED_DENSITY);

    engineConfiguration->triggerInputPins[1] = Gpio::Unassigned;
    engineConfiguration->camInputs[0] = Gpio::A5;

    // set global_trigger_offset_angle 0
    engineConfiguration->globalTriggerAngleOffset = 0;

    engineConfiguration->vvtMode[0] = VVT_SINGLE_TOOTH;
}

Referenced by applyEngineType().

Here is the call graph for this function:

Here is the caller graph for this function:

Go to the source code of this file.
