board_configuration.cpp File Reference

Functions
static void	setDefaultFrankensoStepperIdleParameters ()
static void	setCanFrankensoDefaults ()
Gpio	getWarningLedPin ()
Gpio	getCommsLedPin ()
Gpio	getRunningLedPin ()
static void	configureAccelerometerPins ()
static void	f407_discovery_DefaultConfiguration ()
	Hardware board-specific default configuration (GPIO pins, ADC channels, SPI configs etc.)
void	f407_discovery_boardInitHardware ()
void	setup_custom_board_overrides ()

Function Documentation

configureAccelerometerPins()

static void configureAccelerometerPins ( )

static

Definition at line 42 of file board_configuration.cpp.

                                         {
//  engineConfiguration->accelerometerCsPin = Gpio::E3; // we have a conflict with VVT output on Miata
//  engineConfiguration->is_enabled_spi_1 = true; // we have a conflict with PA5 input pin

    // stm32f4discovery defaults
    engineConfiguration->spi1mosiPin = Gpio::A7;
    engineConfiguration->spi1misoPin = Gpio::A6;
    engineConfiguration->spi1sckPin = Gpio::A5;
}

Referenced by f407_discovery_DefaultConfiguration().

Here is the caller graph for this function:

f407_discovery_boardInitHardware()

void f407_discovery_boardInitHardware

(

)

Definition at line 116 of file board_configuration.cpp.

                                        {

static const struct mc33810_config mc33810 = {
    .spi_bus = &SPID3,
    .spi_config = {
        .circular = false,
#ifdef _CHIBIOS_RT_CONF_VER_6_1_
        .end_cb = nullptr,
#else
        .slave = false,
        .data_cb = nullptr,
        .error_cb = nullptr,
#endif
        // todo: use engineConfiguration->mc33810_cs
        .ssport = GPIOC,
        .sspad = 5,
        .cr1 =
            SPI_CR1_16BIT_MODE |
            SPI_CR1_SSM |
            SPI_CR1_SSI |
            ((3 << SPI_CR1_BR_Pos) & SPI_CR1_BR) |  /* div = 16 */
            SPI_CR1_MSTR |
            /* SPI_CR1_CPOL | */ // = 0
            SPI_CR1_CPHA | // = 1
            0,
        .cr2 = SPI_CR2_16BIT_MODE
    },
    .direct_io = {
        /* injector drivers */
        [0] = {.port = GPIOA, .pad = 3},
        [1] = {.port = GPIOA, .pad = 4},
        [2] = {.port = nullptr, .pad = 0},
        [3] = {.port = nullptr, .pad = 0},
        /* ignition pre-drivers */
        [4] = {.port = GPIOA, .pad = 0},
        [5] = {.port = GPIOA, .pad = 1},
//GPGD mode is not supported yet, ignition mode does not support spi on/off commands
//    so ignition signals should be directly driven
        [6] = {.port = GPIOD, .pad = 0},
// meaning even if we do not use it we need a pin for now
        [7] = {.port = GPIOD, .pad = 1},
    },
    .en = {.port = GPIOA, .pad = 6}, // copy-paste with setMode code!
    // TODO: pick from engineConfiguration->spi3sckPin or whatever SPI is used
    .sck = {.port = GPIOB, .pad = 3},
    .spkdur = Gpio::Unassigned,
    .nomi = Gpio::Unassigned,
    .maxi = Gpio::Unassigned
};

    if (engineConfiguration->engineType == engine_type_e::FRANKENSO_TEST_33810) {
        int ret = mc33810_add(Gpio::MC33810_0_OUT_0, 0, &mc33810);
        efiPrintf("*****************+ mc33810_add %d +*******************", ret);

#ifndef EFI_BOOTLOADER
        // todo: add to more appropriate location?
        addConsoleAction("injinfo", [](){
            efiPrintf("injinfo index=%d", engine->fuelComputer.brokenInjector);
        });
#endif // EFI_BOOTLOADER
    }
}

Referenced by setup_custom_board_overrides().

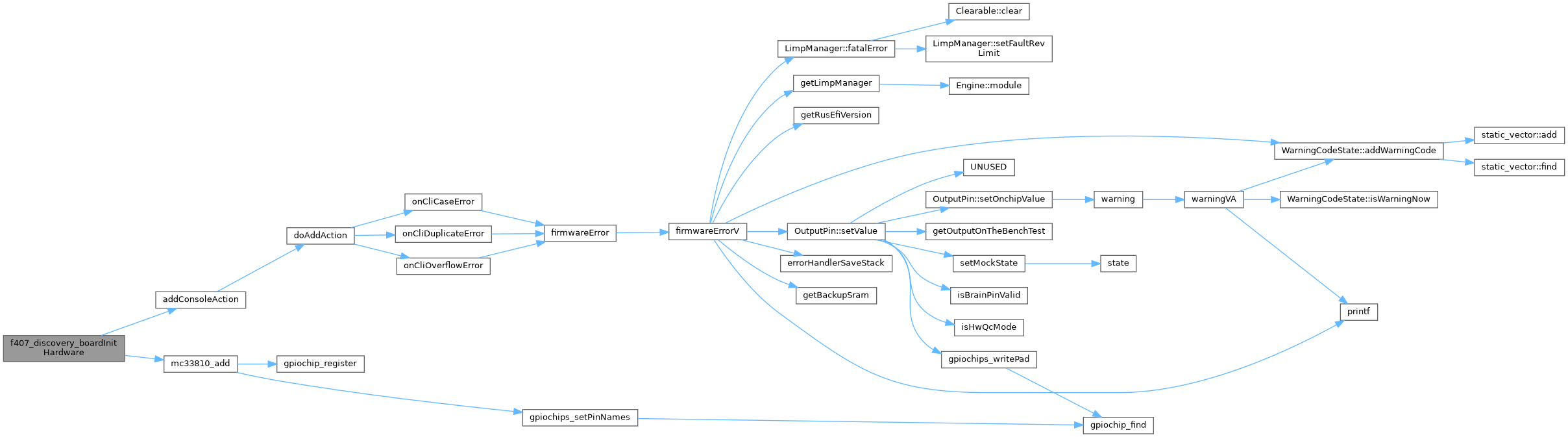

Here is the call graph for this function:

Here is the caller graph for this function:

f407_discovery_DefaultConfiguration()

static void f407_discovery_DefaultConfiguration ( )

static

Hardware board-specific default configuration (GPIO pins, ADC channels, SPI configs etc.)

Definition at line 56 of file board_configuration.cpp.

                                                  {
    setDefaultFrankensoStepperIdleParameters();
    setCanFrankensoDefaults();

#ifndef HW_NOT_COMMUNITY_FRANKENSO
  // f407-discovery community board not frankenso
    config->communityCommsLedPin = Gpio::D15;  // blue LED on discovery
#endif

    // set optional subsystem configs
#if EFI_ONBOARD_MEMS
    // this would override some values from above
    configureAccelerometerPins();
#endif /* EFI_ONBOARD_MEMS */



    engineConfiguration->map.sensor.hwChannel = EFI_ADC_4;
    engineConfiguration->clt.adcChannel = EFI_ADC_6;
    engineConfiguration->iat.adcChannel = EFI_ADC_7;
    engineConfiguration->afr.hwChannel = EFI_ADC_14;

    engineConfiguration->accelerometerSpiDevice = SPI_DEVICE_1;

    engineConfiguration->triggerSimulatorPins[0] = Gpio::D1;
    engineConfiguration->triggerSimulatorPins[1] = Gpio::D2;

    engineConfiguration->triggerInputPins[0] = Gpio::C6;
//  engineConfiguration->triggerInputPins[1] = Gpio::A5;

    // set this to SPI_DEVICE_3 to enable stimulation
    //engineConfiguration->digitalPotentiometerSpiDevice = SPI_DEVICE_3;
    engineConfiguration->digitalPotentiometerChipSelect[0] = Gpio::D7;
    engineConfiguration->digitalPotentiometerChipSelect[1] = Gpio::Unassigned;
    engineConfiguration->digitalPotentiometerChipSelect[2] = Gpio::D5;
    engineConfiguration->digitalPotentiometerChipSelect[3] = Gpio::Unassigned;

    engineConfiguration->spi1mosiPin = Gpio::B5;
    engineConfiguration->spi1misoPin = Gpio::B4;
    engineConfiguration->spi1sckPin = Gpio::B3; // please note that this pin is also SWO/SWD - Single Wire debug Output

    engineConfiguration->spi2mosiPin = Gpio::B15;
    engineConfiguration->spi2misoPin = Gpio::B14;
    engineConfiguration->spi2sckPin = Gpio::B13;

    engineConfiguration->spi3mosiPin = Gpio::B5;
    engineConfiguration->spi3misoPin = Gpio::B4;
    engineConfiguration->spi3sckPin = Gpio::B3;



#if EFI_FILE_LOGGING
    setDefaultSdCardParameters();
#endif /* EFI_FILE_LOGGING */

    engineConfiguration->is_enabled_spi_1 = false;
    engineConfiguration->is_enabled_spi_2 = false;
    engineConfiguration->is_enabled_spi_3 = true;
}

Referenced by setup_custom_board_overrides().

Here is the call graph for this function:

Here is the caller graph for this function:

getCommsLedPin()

Gpio getCommsLedPin

(

)

Definition at line 26 of file board_configuration.cpp.

                      {
#if defined(HW_NOT_COMMUNITY_FRANKENSO) || defined(EFI_BOOTLOADER)
  // not f407-discovery but f407-discovery while reusing board file
  return Gpio::D15;
#else
  // f407-discovery community board not frankenso
    return config->communityCommsLedPin;
#endif
}

getRunningLedPin()

Gpio getRunningLedPin

(

)

Definition at line 36 of file board_configuration.cpp.

                        {
    // open question if we need those LEDs at all? shall those be configurable?
    return Gpio::Unassigned;
}

getWarningLedPin()

Gpio getWarningLedPin

(

)

Definition at line 21 of file board_configuration.cpp.

                        {
    // open question if we need those LEDs at all? shall those be configurable?
    return Gpio::Unassigned;
}

setCanFrankensoDefaults()

static void setCanFrankensoDefaults ( )

static

Definition at line 16 of file board_configuration.cpp.

                                      {
    engineConfiguration->canTxPin = Gpio::B6;
    engineConfiguration->canRxPin = Gpio::B12;
}

Referenced by f407_discovery_DefaultConfiguration().

Here is the caller graph for this function:

setDefaultFrankensoStepperIdleParameters()

static void setDefaultFrankensoStepperIdleParameters ( )

static

Definition at line 8 of file board_configuration.cpp.

                                                       {
    engineConfiguration->idle.stepperDirectionPin = Gpio::E10;
    engineConfiguration->idle.stepperStepPin = Gpio::E12;
    engineConfiguration->stepperEnablePin = Gpio::E14;
    engineConfiguration->idleStepperReactionTime = 10;
    engineConfiguration->idleStepperTotalSteps = 150;
}

Referenced by f407_discovery_DefaultConfiguration().

Here is the caller graph for this function:

setup_custom_board_overrides()

void setup_custom_board_overrides

(

)

Definition at line 179 of file board_configuration.cpp.

                                    {
    custom_board_InitHardware = f407_discovery_boardInitHardware;
    custom_board_DefaultConfiguration = f407_discovery_DefaultConfiguration;
}

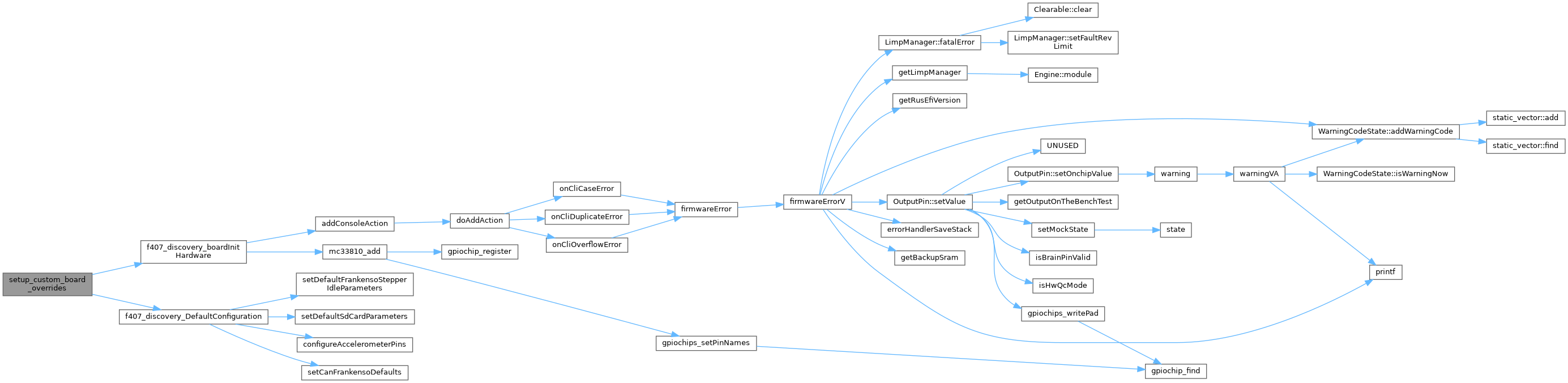

Here is the call graph for this function:
