board_configuration.cpp File Reference

Detailed Description

See https://rusefi.com/s/XX

Author

Andrey Belomutskiy, (c) 2012-2023

Definition in file board_configuration.cpp.

Functions
static void	setInjectorPins ()
static void	setIgnitionPins ()
static void	setupDefaultSensorInputs ()
void	onBoardStandBy ()
static void	hellen_honda_k_boardConfigOverrides ()
static void	hellen_honda_k_boardDefaultConfiguration ()
	Board-specific configuration defaults.
int	getBoardMetaOutputsCount ()
int	getBoardMetaLowSideOutputsCount ()
Gpio *	getBoardMetaOutputs ()
void	setup_custom_board_overrides ()

Variables
static Gpio	OUTPUTS []

Function Documentation

getBoardMetaLowSideOutputsCount()

int getBoardMetaLowSideOutputsCount

(

)

Definition at line 181 of file board_configuration.cpp.

                                      {
    return getBoardMetaOutputsCount() - 5;
}

Here is the call graph for this function:

getBoardMetaOutputs()

Gpio * getBoardMetaOutputs

(

)

Definition at line 185 of file board_configuration.cpp.

                            {
    return OUTPUTS;
}

getBoardMetaOutputsCount()

int getBoardMetaOutputsCount

(

)

Definition at line 177 of file board_configuration.cpp.

                               {
    return efi::size(OUTPUTS);
}

hellen_honda_k_boardConfigOverrides()

static void hellen_honda_k_boardConfigOverrides ( )

static

Definition at line 49 of file board_configuration.cpp.

                                                  {
    setHellenMegaEnPin();

    hellenMegaModule();
    configureHellenCanTerminator();


    engineConfiguration->triggerInputPins[0] = Gpio::H144_IN_RES1;
    engineConfiguration->camInputs[0] = Gpio::H144_IN_RES3;
    // ex or in?
    engineConfiguration->camInputs[1] = Gpio::H144_IN_RES2;


//    //ETB1
//    // PWM pin
//    engineConfiguration->etbIo[0].controlPin = Gpio::H144_OUT_PWM2;
//    // DIR pin
//  engineConfiguration->etbIo[0].directionPin1 = Gpio::H144_OUT_PWM3;
//      // Disable pin
//      engineConfiguration->etbIo[0].disablePin = Gpio::H144_OUT_IO12;
//      // Unused
//  engineConfiguration->etbIo[0].directionPin2 = Gpio::Unassigned;

}

Referenced by setup_custom_board_overrides().

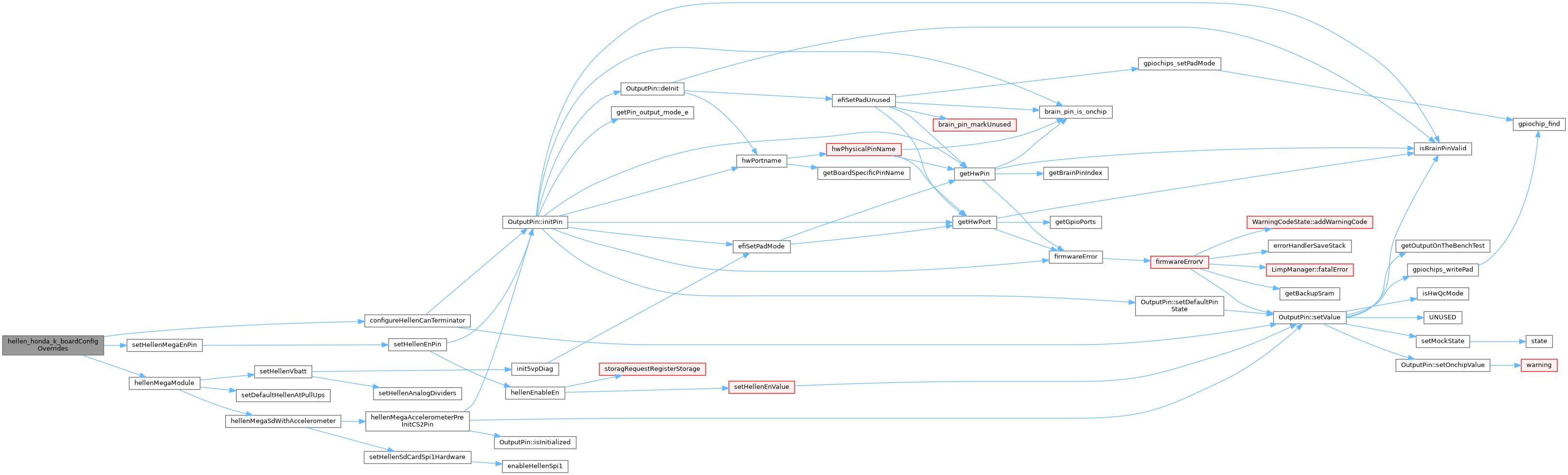

Here is the call graph for this function:

Here is the caller graph for this function:

hellen_honda_k_boardDefaultConfiguration()

static void hellen_honda_k_boardDefaultConfiguration ( )

static

Board-specific configuration defaults.

See also setDefaultEngineConfiguration

Definition at line 81 of file board_configuration.cpp.

                                                       {
    setInjectorPins();
    setIgnitionPins();
    setHondaK();

    // not override since sometimes we have issues?
    setHellenMMbaro();

    engineConfiguration->displayLogicLevelsInEngineSniffer = true;

    engineConfiguration->camSyncOnSecondCrankRevolution = true;
    engineConfiguration->globalTriggerAngleOffset = 303;

    engineConfiguration->enableSoftwareKnock = true;

    setHellenCan();

    engineConfiguration->vvtPins[0] = Gpio::H144_OUT_PWM4;

  gppwm_channel *vtsControl = &engineConfiguration->gppwm[0];
  vtsControl->pin = Gpio::H144_OUT_IO6;

    engineConfiguration->fuelPumpPin = Gpio::H144_OUT_IO13;
    engineConfiguration->idle.solenoidPin = Gpio::H144_LS_6;
    engineConfiguration->fanPin = Gpio::H144_OUT_IO12;
    engineConfiguration->mainRelayPin = Gpio::H144_OUT_IO3;
    engineConfiguration->malfunctionIndicatorPin = Gpio::H144_OUT_IO7;

    // how come this is not denso 183?!
    engineConfiguration->map.sensor.type = MT_CUSTOM;
    engineConfiguration->map.sensor.lowValue = 11.4;
    engineConfiguration->mapLowValueVoltage = 0.5;
    engineConfiguration->map.sensor.highValue = 170.7;
    engineConfiguration->mapHighValueVoltage = 4.8;

    engineConfiguration->enableKline = true;
    config->hondaKcltGaugeAdder = 50;
    engineConfiguration->kLineBaudRate = 9600;
    engineConfiguration->hondaK = true;
    engineConfiguration->verboseKLine = true;

    engineConfiguration->brakePedalPin = Gpio::H144_IN_CAM;
    engineConfiguration->acRelayPin = Gpio::H144_LS_5;
    engineConfiguration->tachOutputPin = Gpio::H144_OUT_IO10;
    // A/C switch on k-line

    // "required" hardware is done - set some reasonable defaults
    setupDefaultSensorInputs();

    engineConfiguration->etbFunctions[0] = DC_None;
    engineConfiguration->etbFunctions[1] = DC_Wastegate;

    // Some sensible defaults for other options
    setCrankOperationMode();

    setAlgorithm(engine_load_mode_e::LM_SPEED_DENSITY);

    engineConfiguration->injectorCompensationMode = ICM_FixedRailPressure;

#ifndef EFI_BOOTLOADER
    setCommonNTCSensorParameters(&engineConfiguration->clt);
    setCommonNTCSensorParameters(&engineConfiguration->iat);
#endif // EFI_BOOTLOADER
    setTPS1Calibration(100, 650);
    hellenWbo();

  setAccelerometerSpi();
}

Referenced by setup_custom_board_overrides().

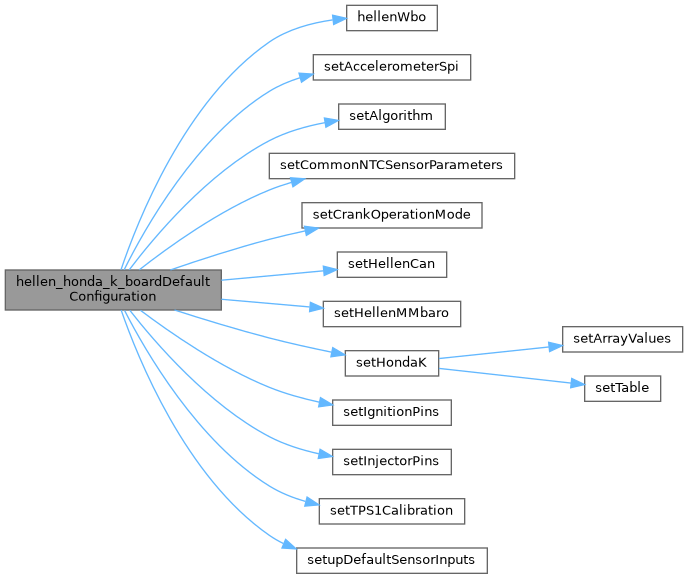

Here is the call graph for this function:

Here is the caller graph for this function:

onBoardStandBy()

void onBoardStandBy

(

)

Definition at line 44 of file board_configuration.cpp.

                      {
    efiPrintf("K: onBoardStandBy");
    hellenBoardStandBy();
}

Referenced by configureRusefiLuaUtilHooks().

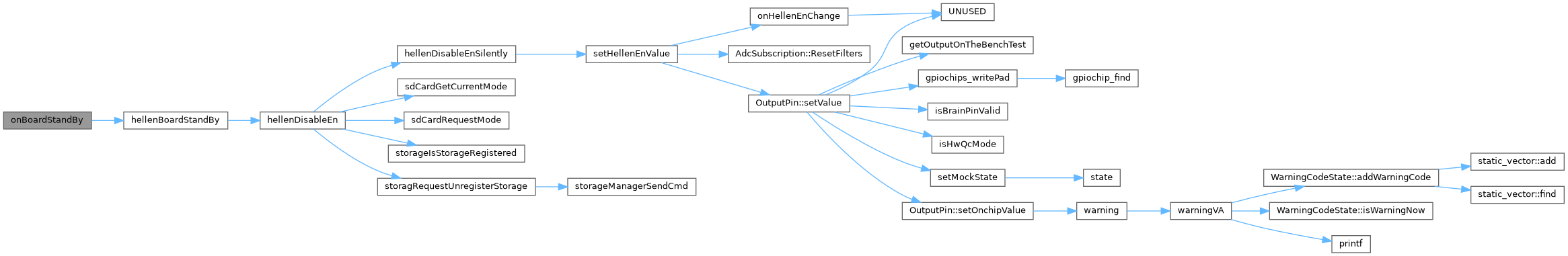

Here is the call graph for this function:

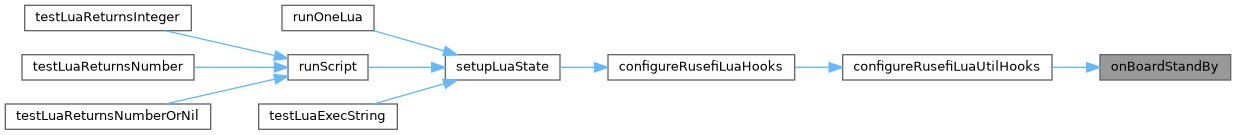

Here is the caller graph for this function:

setIgnitionPins()

static void setIgnitionPins ( )

static

Definition at line 22 of file board_configuration.cpp.

                              {
    engineConfiguration->ignitionPins[0] = Gpio::H144_IGN_1;
    engineConfiguration->ignitionPins[1] = Gpio::H144_IGN_2;
    engineConfiguration->ignitionPins[2] = Gpio::H144_IGN_3;
    engineConfiguration->ignitionPins[3] = Gpio::H144_IGN_4;
}

setInjectorPins()

static void setInjectorPins ( )

static

Definition at line 15 of file board_configuration.cpp.

                              {
    engineConfiguration->injectionPins[0] = Gpio::H144_LS_1;
    engineConfiguration->injectionPins[1] = Gpio::H144_LS_2;
    engineConfiguration->injectionPins[2] = Gpio::H144_LS_3;
    engineConfiguration->injectionPins[3] = Gpio::H144_LS_4;
}

setup_custom_board_overrides()

void setup_custom_board_overrides

(

)

Definition at line 189 of file board_configuration.cpp.

                                    {
    custom_board_DefaultConfiguration = hellen_honda_k_boardDefaultConfiguration;
    custom_board_ConfigOverrides =  hellen_honda_k_boardConfigOverrides;
}

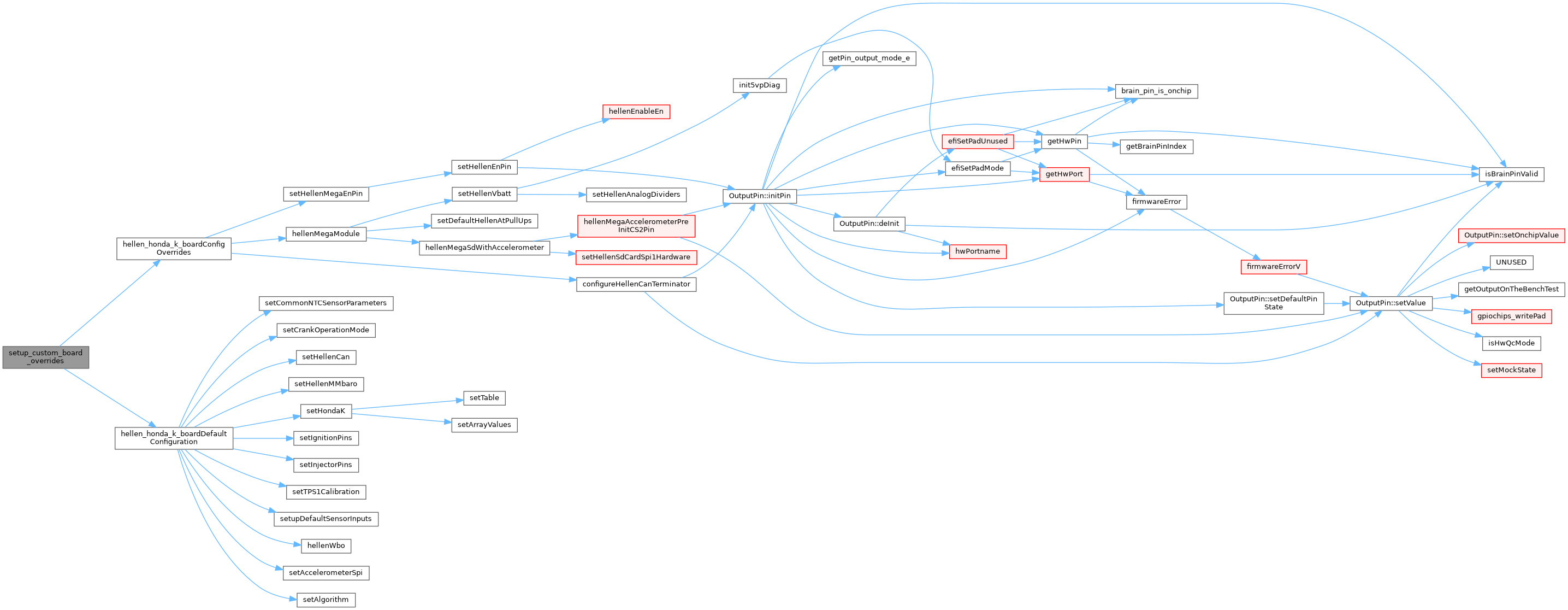

Here is the call graph for this function:

setupDefaultSensorInputs()

static void setupDefaultSensorInputs ( )

static

Definition at line 29 of file board_configuration.cpp.

                                       {
    engineConfiguration->vehicleSpeedSensorInputPin = Gpio::H144_IN_VSS;

    engineConfiguration->tps1_1AdcChannel = H144_IN_TPS;


    engineConfiguration->map.sensor.hwChannel = H144_IN_MAP1;

    engineConfiguration->afr.hwChannel = EFI_ADC_NONE;

    engineConfiguration->clt.adcChannel = H144_IN_CLT;

    engineConfiguration->iat.adcChannel = H144_IN_IAT;
}

Variable Documentation

OUTPUTS

Gpio OUTPUTS[]

static

Initial value:

= {
        Gpio::H144_LS_1,
        Gpio::H144_LS_2,
        Gpio::H144_LS_3,
        Gpio::H144_LS_4,
    Gpio::H144_LS_5,
    Gpio::H144_LS_6,
    Gpio::H144_LS_7,
    Gpio::H144_LS_8,
    Gpio::H144_OUT_IO12,
    Gpio::H144_OUT_PWM6,
    Gpio::H144_OUT_PWM5,
    Gpio::H144_OUT_IO3,
    Gpio::H144_OUT_IO7,
    Gpio::H144_OUT_IO13,
    Gpio::H144_OUT_PWM8,
    Gpio::H144_OUT_IO9,

    Gpio::H144_OUT_IO10,

    Gpio::H144_OUT_IO6,
    Gpio::H144_IGN_1,
    Gpio::H144_IGN_2,
    Gpio::H144_IGN_3,
    Gpio::H144_IGN_4,
}

Definition at line 150 of file board_configuration.cpp.

                        {
        Gpio::H144_LS_1, // 1 inj 1
        Gpio::H144_LS_2,
        Gpio::H144_LS_3,
        Gpio::H144_LS_4, // 4
    Gpio::H144_LS_5, // 5 E18 - AC Relay
    Gpio::H144_LS_6, // 6 A12 Idle Air Control
    Gpio::H144_LS_7, // 7 intake runner
    Gpio::H144_LS_8, // 8 Lockout Solenoid
    Gpio::H144_OUT_IO12, // 9 Radiator Relay Output
    Gpio::H144_OUT_PWM6, // 10 B21 - EVAP
    Gpio::H144_OUT_PWM5, // 11 B23 VTC VVT
    Gpio::H144_OUT_IO3, // 12 E7 Main Relay Control
    Gpio::H144_OUT_IO7, // 13: E31 Check Engine
    Gpio::H144_OUT_IO13, // E1 Fuel Relay
    Gpio::H144_OUT_PWM8, // C11 Aux Low 3
    Gpio::H144_OUT_IO9, // B18 Alternator Control
    // low-side with pull-up, faking push-pull
    Gpio::H144_OUT_IO10, // 17: E26 Tachometer
    // high side starts here
    Gpio::H144_OUT_IO6, // B15 VTEC/VTS Output
    Gpio::H144_IGN_1, // A30 - IGN1
    Gpio::H144_IGN_2, // A29 - IGN2
    Gpio::H144_IGN_3, // A28 - IGN3
    Gpio::H144_IGN_4, // A27 - IGN4
};

Go to the source code of this file.
