settings.h File Reference

Detailed Description

This file is about configuring engine via the human-readable protocol.

Date

Dec 30, 2012

Author

Andrey Belomutskiy, (c) 2012-2020

Definition in file settings.h.

Functions
void	initSettings ()
void	printSpiState ()
void	printConfiguration ()
	Prints current engine configuration to human-readable console.
bool	isHwQcMode ()
void	setHwQcMode ()
void	setEngineTypeAndSave (int value)
void	setEngineType (int value, bool isWriteToFlash=true)
void	readPin (const char *pinName)
void	printDateTime ()
void	setDateTime (const char *const isoDateTime)

Function Documentation

initSettings()

void initSettings

(

)

Definition at line 637 of file settings.cpp.

                    {
#if EFI_SIMULATOR
    printf("initSettings\n");
#endif // EFI_SIMULATOR

    // todo: start saving values into flash right away?

#if EFI_ENGINE_CONTROL
    // used by HW CI
    addConsoleAction(CMD_INDIVIDUAL_INJECTION, setIndividualCoilsIgnition);
    addConsoleAction("showconfig", printConfiguration);
    addConsoleActionF("set_whole_timing_map", setWholeTimingMapCmd);
#endif // EFI_ENGINE_CONTROL

    addConsoleAction("stopengine", (Void) scheduleStopEngine);

    // todo: refactor this - looks like all boolean flags should be controlled with less code duplication
    addConsoleActionI("enable_spi", enableSpi);
    addConsoleActionI("disable_spi", disableSpi);

    addConsoleActionS(CMD_ENABLE, enable);
    addConsoleActionS(CMD_DISABLE, disable);

    addConsoleActionSS(CMD_SET, setValue);
    addConsoleActionS(CMD_GET, getValue);

#if EFI_PROD_CODE
    addConsoleActionSS(CMD_IGNITION_PIN, setIgnitionPin);
    addConsoleActionSS(CMD_TRIGGER_PIN, setTriggerInputPin);
    addConsoleActionSS(CMD_TRIGGER_SIMULATOR_PIN, setTriggerSimulatorPin);

    addConsoleActionI(CMD_ECU_UNLOCK, unlockEcu);

    addConsoleActionS(CMD_ALTERNATOR_PIN, setAlternatorPin);
    addConsoleActionS(CMD_IDLE_PIN, setIdlePin);

    addConsoleActionS("bench_clearpin", benchClearPin);
    addConsoleActionS("bench_setpin", benchSetPin);
    addConsoleActionS("readpin", readPin);
    addConsoleAction("hw_qc_mode", [](){
    setHwQcMode();
  });
    addConsoleActionS("bench_set_output_mode", [](const char *pinName){
      brain_pin_e pin = parseBrainPinWithErrorMessage(pinName);
      if (pin == Gpio::Invalid) {
          return;
      }
      efiSetPadModeWithoutOwnershipAcquisition("manual-mode", pin, PAL_MODE_OUTPUT_PUSHPULL);
  });

#if HAL_USE_ADC
    addConsoleAction("adc_report", printFullAdcReport);
    addConsoleActionSS("set_analog_input_pin", setAnalogInputPin);
#endif // HAL_USE_ADC
    addConsoleActionSS(CMD_LOGIC_PIN, setLogicInputPin);
#endif // EFI_PROD_CODE
}

Referenced by commonInitEngineController().

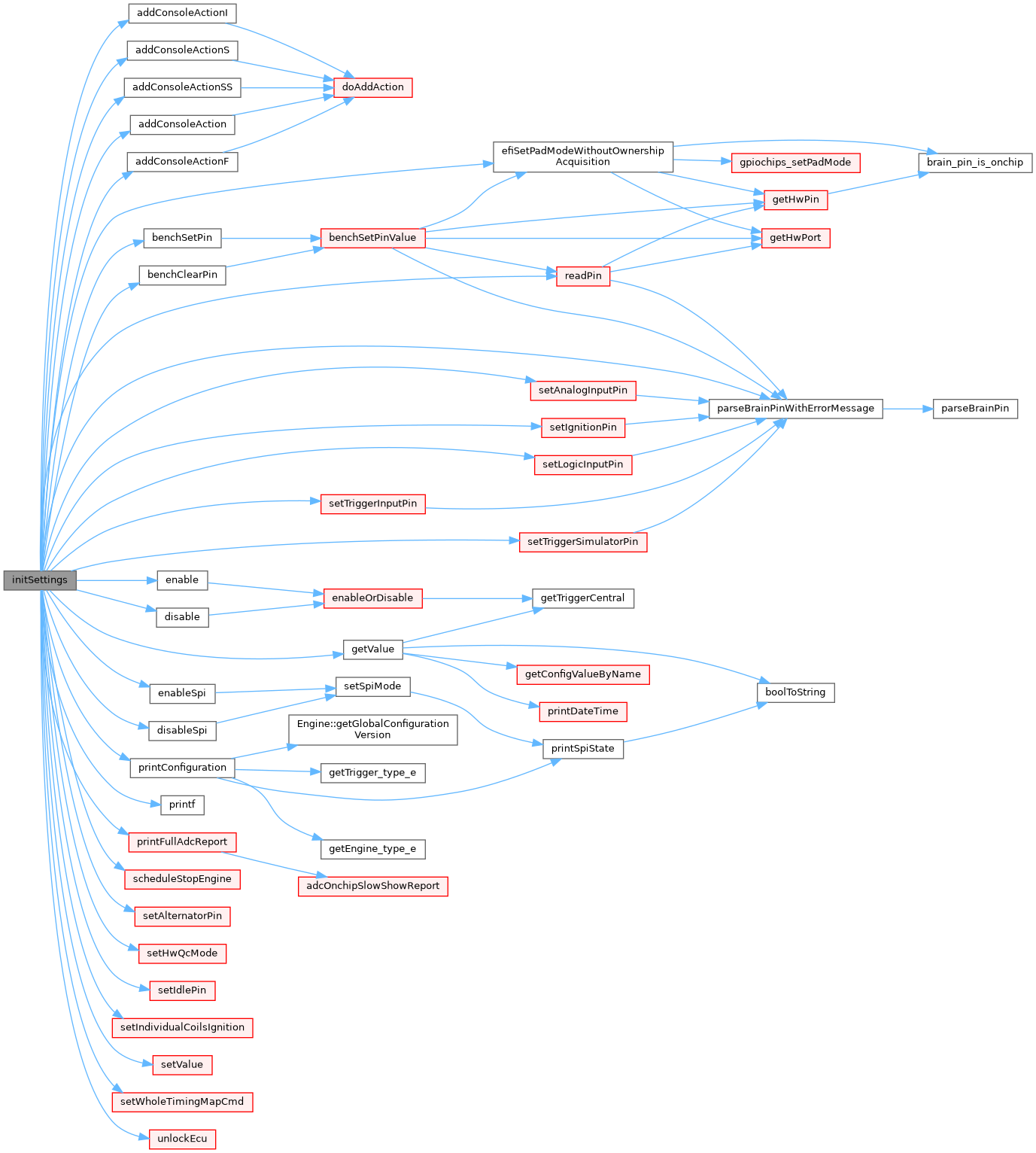

Here is the call graph for this function:

Here is the caller graph for this function:

isHwQcMode()

bool isHwQcMode

(

)

Definition at line 40 of file can_bench_test.cpp.

                   {
#if EFI_PROD_CODE
  return qcDirectPinControlMode;
#else
  return false;
#endif // EFI_PROD_CODE
}

Referenced by CanWrite::PeriodicTask(), and OutputPin::setValue().

Here is the caller graph for this function:

printConfiguration()

void printConfiguration

(

)

Prints current engine configuration to human-readable console.

Definition at line 57 of file settings.cpp.

                          {

    efiPrintf("Template %s/%d trigger %s/%s/%d", getEngine_type_e(engineConfiguration->engineType),
            (int)engineConfiguration->engineType,
            getTrigger_type_e(engineConfiguration->trigger.type),
            Enum2String(engineConfiguration->fuelAlgorithm), (int)engineConfiguration->fuelAlgorithm);

    efiPrintf("configurationVersion=%d", engine->getGlobalConfigurationVersion());

#if EFI_PROD_CODE
    printSpiState();
#endif // EFI_PROD_CODE
}

Referenced by initSettings(), setAlgorithmInt(), setCrankingInjectionMode(), setCrankingRpm(), setCrankingTimingAngle(), setEngineType(), setFiringOrder(), setGlobalTriggerAngleOffset(), setInjectionMode(), setRpmHardLimit(), and setTriggerType().

Here is the call graph for this function:

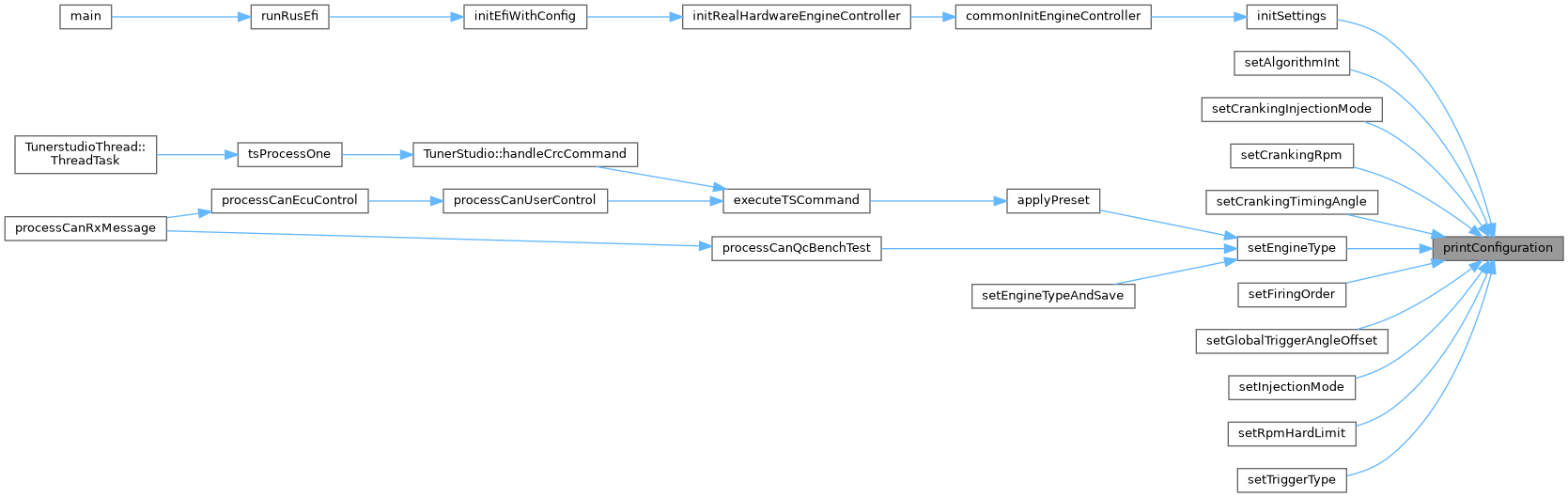

Here is the caller graph for this function:

printDateTime()

void printDateTime

(

)

Definition at line 695 of file settings.cpp.

                     {
#if EFI_RTC
    printRtcDateTime();
#else // EFI_RTC
    efiPrintf("Cannot print time: RTC not supported");
#endif // EFI_RTC
}

Referenced by getValue(), and initRtc().

Here is the call graph for this function:

Here is the caller graph for this function:

printSpiState()

void printSpiState

(

)

Definition at line 46 of file settings.cpp.

                     {
    efiPrintf("spi 1=%s/2=%s/3=%s/4=%s",
        boolToString(engineConfiguration->is_enabled_spi_1),
        boolToString(engineConfiguration->is_enabled_spi_2),
        boolToString(engineConfiguration->is_enabled_spi_3),
        boolToString(engineConfiguration->is_enabled_spi_4));
}

Referenced by printConfiguration(), and setSpiMode().

Here is the call graph for this function:

Here is the caller graph for this function:

readPin()

void readPin

(

const char *

pinName

)

Definition at line 205 of file settings.cpp.

                                  {
    brain_pin_e pin = parseBrainPinWithErrorMessage(pinName);
    if (pin == Gpio::Invalid) {
        return;
    }
    int physicalValue = palReadPad(getHwPort("read", pin), getHwPin("read", pin));
    efiPrintf("pin %s value %d", hwPortname(pin), physicalValue);
}

Referenced by benchSetPinValue(), and initSettings().

Here is the call graph for this function:

Here is the caller graph for this function:

setDateTime()

void setDateTime

(

const char *const

isoDateTime

)

Definition at line 703 of file settings.cpp.

                                                 {
#if EFI_RTC
    printRtcDateTime();
    if (strlen(isoDateTime) >= 19 && isoDateTime[10] == 'T') {
        efidatetime_t dateTime;
        dateTime.year = atoi(isoDateTime);
        dateTime.month = atoi(isoDateTime + 5);
        dateTime.day = atoi(isoDateTime + 8);
        dateTime.hour = atoi(isoDateTime + 11);
        dateTime.minute = atoi(isoDateTime + 14);
        dateTime.second = atoi(isoDateTime + 17);
        if (dateTime.year != ATOI_ERROR_CODE &&
                dateTime.month >= 1 && dateTime.month <= 12 &&
                dateTime.day >= 1 && dateTime.day <= 31 &&
                dateTime.hour <= 23 &&
                dateTime.minute <= 59 &&
                dateTime.second <= 59) {
            // doesn't concern about leap years or seconds; ChibiOS doesn't support (added) leap seconds anyway
            setRtcDateTime(&dateTime);
            efiPrintf("Time is changed to");
            printRtcDateTime();
            return;
        }
    }
    efiPrintf("date_set Date parameter %s is wrong", isoDateTime);
#else // EFI_RTC
    efiPrintf("Cannot set time: RTC not supported");
#endif // EFI_RTC
}

Referenced by setValue().

Here is the call graph for this function:

Here is the caller graph for this function:

setEngineType()

void setEngineType	(	int	value,
		bool	isWriteToFlash = true
	)

Definition at line 739 of file settings.cpp.

                                                   {
    {
#if EFI_PROD_CODE
        chibios_rt::CriticalSectionLocker csl;
#endif // EFI_PROD_CODE

        engineConfiguration->engineType = (engine_type_e)value;
        resetConfigurationExt((engine_type_e)value);
        engine->resetEngineSnifferIfInTestMode();

#if EFI_CONFIGURATION_STORAGE
        if (isWriteToFlash) {
            writeToFlashNow();
        }
#endif /* EFI_CONFIGURATION_STORAGE */
    }
    incrementGlobalConfigurationVersion("engineType");
#if EFI_ENGINE_CONTROL && ! EFI_UNIT_TEST
    printConfiguration();
#endif // ! EFI_UNIT_TEST
}

Referenced by applyPreset(), processCanQcBenchTest(), and setEngineTypeAndSave().

Here is the call graph for this function:

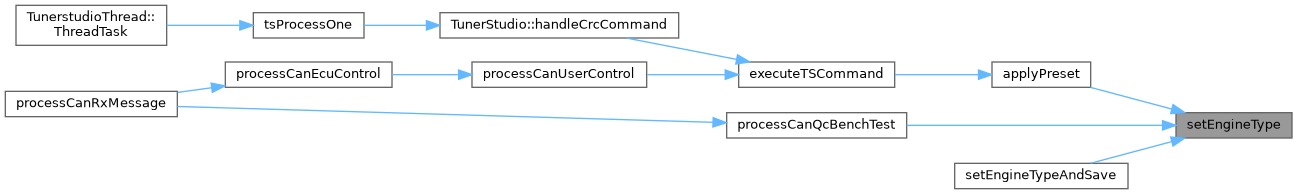

Here is the caller graph for this function:

setEngineTypeAndSave()

void setEngineTypeAndSave

(

int

value

)

Definition at line 735 of file settings.cpp.

                                     {
    setEngineType(value, true);
}

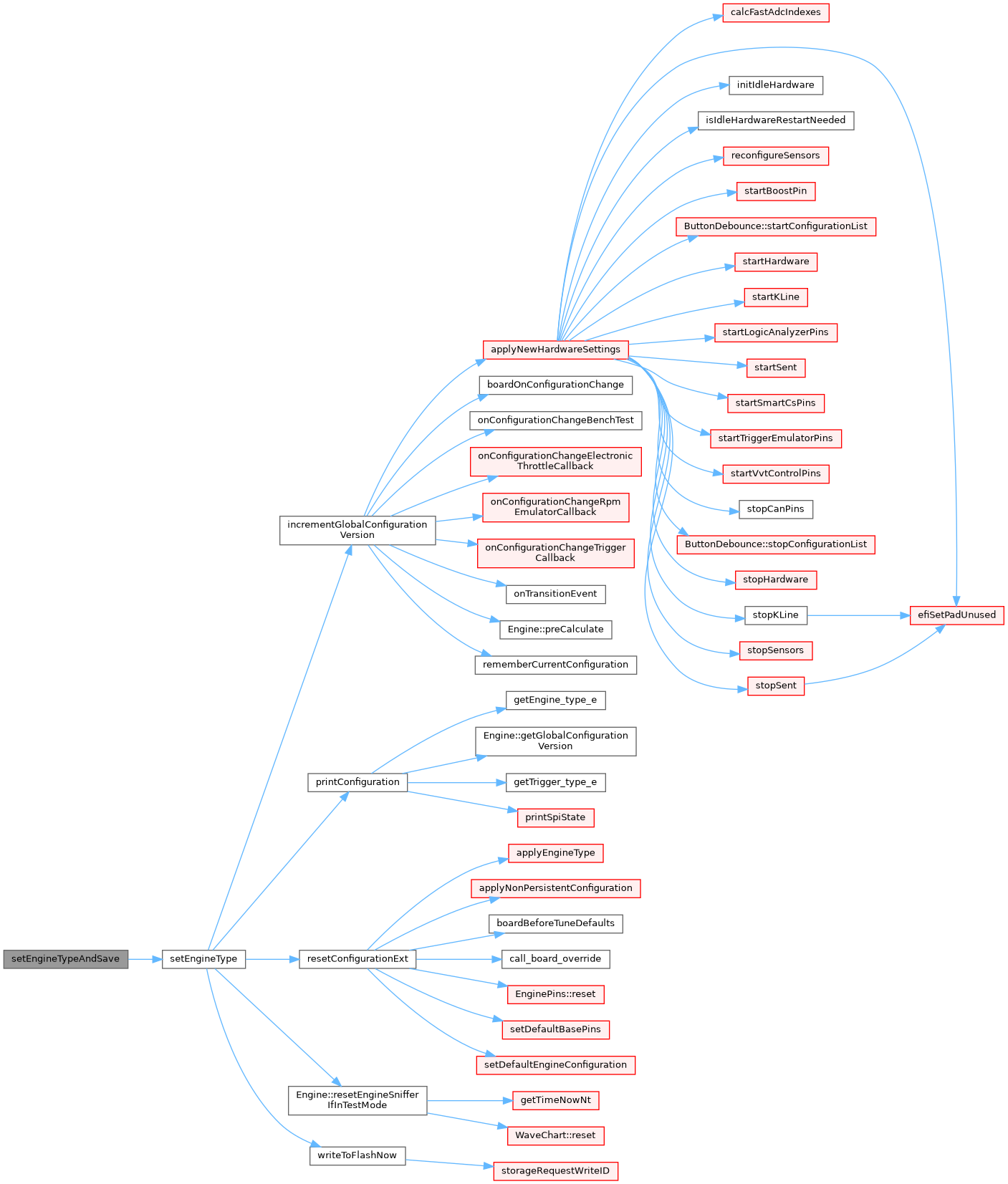

Here is the call graph for this function:

setHwQcMode()

void setHwQcMode

(

)

Definition at line 48 of file can_bench_test.cpp.

                   {
#if EFI_PROD_CODE
  qcDirectPinControlMode = true;
#if HW_HELLEN
        if (!getHellenBoardEnabled()) {
            hellenEnableEn("HW QC");
        }
#endif // HW_HELLEN
#endif // EFI_PROD_CODE
}

Referenced by initSettings(), processCanQcBenchTest(), and qcSetEtbState().

Here is the call graph for this function:

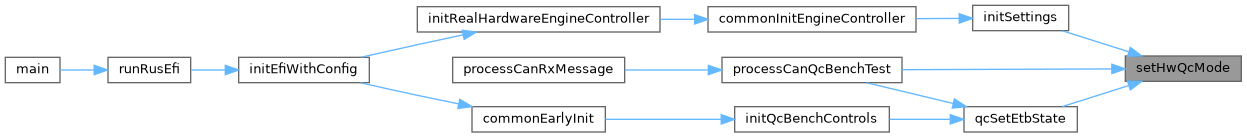

Here is the caller graph for this function:

Go to the source code of this file.
