engine_type_impl.cpp File Reference

Functions
PUBLIC_API_WEAK_SOMETHING_WEIRD void	applyUnknownEngineType (engine_type_e engineType)
PUBLIC_API_WEAK void	boardAfterTuneDefaults (engine_type_e engineType)
void	applyEngineType (engine_type_e engineType)
PUBLIC_API_WEAK_SOMETHING_WEIRD engine_type_e	getLastEngineType ()

Function Documentation

applyEngineType()

void applyEngineType

(

engine_type_e

engineType

)

And override them with engine-specific defaults

Definition at line 57 of file engine_type_impl.cpp.

                                               {
    /**
     * And override them with engine-specific defaults
     */
    switch (engineType) {
    case engine_type_e::FORD_COYOTE:
    case engine_type_e::MAZDA_MIATA_NC:
    case engine_type_e::DISCOVERY_PDM:
    case engine_type_e::UNUSED94:
    case engine_type_e::UNUSED_97:
    case engine_type_e::TEST_100:
    case engine_type_e::TEST_101:
    case engine_type_e::UNUSED102:
    case engine_type_e::UNUSED_105:
    case engine_type_e::HELLEN_4CHAN_STIM_QC:
    case engine_type_e::HELLEN_2CHAN_STIM_QC:
    case engine_type_e::HELLEN_154_VAG:
    case engine_type_e::HELLEN_121_NISSAN_8_CYL:
    case engine_type_e::HELLEN_121_NISSAN_ALMERA_N16:
    case engine_type_e::SIMULATOR_CONFIG:
    case engine_type_e::HELLEN_121_VAG_4_CYL:
    case engine_type_e::MINIMAL_PINS:
    case engine_type_e::UNUSED_5:
    case engine_type_e::UNUSED_16:
        // all basic settings are already set in prepareVoidConfiguration(), no need to set anything here
        // nothing to do - we do it all in setBoardDefaultConfiguration
        break;
#if EFI_UNIT_TEST || EFI_SIMULATOR
    case engine_type_e::TEST_ISSUE_366_BOTH:
      #if EFI_UNIT_TEST
        setTestEngineIssue366both();
        #endif
        break;
    case engine_type_e::TEST_ISSUE_366_RISE:
      #if EFI_UNIT_TEST
        setTestEngineIssue366rise();
        #endif
        break;
    case engine_type_e::ET_BOSCH_QUICK_START:
      setTestEngineBoschQuickStart();
      break;
    case engine_type_e::ET_TEST_WITH_BOSCH_QUICK_START:
      setTestEngineWithBoschQuickStartCam();
      break;
#endif // EFI_UNIT_TEST

#if EFI_TCU || EFI_SIMULATOR
    case engine_type_e::TCU_4R70W:
        #if EFI_TCU
        configureTcu4R70W();
        #endif // EFI_TCU
        break;
#endif //EFI_TCU

#if defined(HW_SUBARU_2011) || defined(HW_HELLEN_8CHAN) || HW_PROTEUS
    case engine_type_e::SUBARU_2011:
      setSubaru2011();
        break;
#endif

#if HW_MICRO_RUSEFI || HW_PROTEUS
    case engine_type_e::MERCEDES_M111:
        setMercedesM111EngineConfiguration();
        break;
#endif

#if HW_MICRO_RUSEFI
    case engine_type_e::MRE_VW_B6:
        setMreVwPassatB6();
        break;
    case engine_type_e::MRE_SECONDARY_CAN:
        mreSecondaryCan();
        break;
    case engine_type_e::MRE_SUBARU_EJ18:
        setSubaruEJ18_MRE();
        break;
    case engine_type_e::UNUSED31:
    case engine_type_e::BMW_M73_MRE:
    case engine_type_e::BMW_M73_MRE_SLAVE:
        setEngineBMW_M73_microRusEfi();
        break;
    case engine_type_e::MRE_BODY_CONTROL:
        mreBCM();
        break;
#endif // HW_MICRO_RUSEFI
    case engine_type_e::HONDA_OBD1:
        setHondaObd1();
        break;
    case engine_type_e::FUEL_BENCH:
      fuelBenchMode();
        break;

#if HW_PROTEUS || HW_HELLEN_4CHAN || HW_HELLEN_8CHAN || HW_HELLEN_4K_GDI
    case engine_type_e::FORD_ECOBOOST:
      setFordEcoboost();
        break;
  case engine_type_e::HYUNDAI_PB:
    setHyundaiPb();
      break;
#endif

#if HW_PROTEUS || HW_HELLEN_HONDA
    case engine_type_e::HONDA_K:
        setHondaK();
        break;
#endif

#if HW_HELLEN
    case engine_type_e::MAZDA_MIATA_NA96:
        setMazdaMiata96();
        break;
    case engine_type_e::MAZDA_MIATA_NA6:
        setMazdaMiataNA6();
        break;
    case engine_type_e::MAZDA_MIATA_NA94:
        setMazdaMiataNA94();
        break;
    case engine_type_e::MAZDA_MIATA_NB1:
        setMazdaMiataNB1();
        break;
    case engine_type_e::MAZDA_MIATA_NB2:
        setMazdaMiataNB2();
        break;
    case engine_type_e::MAZDA_MIATA_NB2_36:
        setMazdaMiataNB2_36();
        break;
#endif

#if HW_PROTEUS || HW_HELLEN
    case engine_type_e::HARLEY:
        setHarley();
        break;
#endif

#if HW_PROTEUS || HW_HELLEN
    case engine_type_e::POLARIS_RZR:
    case engine_type_e::MAVERICK_X3:
        setMaverickX3();
        break;
    case engine_type_e::ME17_9_MISC:
    case engine_type_e::POLARIS:
        setSlingshot();
        break;
#endif

    case engine_type_e::GM_LCV:
      setGmLcv();
        break;
    case engine_type_e::GM_LNF:
      setGmLnf();
        break;
    case engine_type_e::GM_LTG:
      setGmLtg();
        break;
    case engine_type_e::GM_SBC_GEN5:
      setGmSbcGen5();
        break;

#if defined(HW_HELLEN_8CHAN) || HW_PROTEUS || EFI_SIMULATOR
    case engine_type_e::GM_SBC_GEN4:
        setGmLs4();
        break;
#endif

#if HW_PROTEUS || EFI_SIMULATOR
    case engine_type_e::WASTEGATE_PROTEUS_TEST:
        proteusDcWastegateTest();
        break;
    case engine_type_e::PROTEUS_NISSAN_VQ35:
        setProteusNissanVQ();
        break;
    case engine_type_e::PROTEUS_VW_B6:
        setProteusVwPassatB6();
        break;
    case engine_type_e::UNUSED42:
    case engine_type_e::PROTEUS_LUA_DEMO:
        proteusLuaDemo();
        break;
    case engine_type_e::PROTEUS_BMW_M73:
        setEngineBMW_M73_Proteus();
        break;
    case engine_type_e::MIATA_PROTEUS_TCU:
        setMiataNB2_Proteus_TCU();
        break;
    case engine_type_e::HONDA_OBD2A:
        setProteusHondaOBD2A();
        break;
    case engine_type_e::PROTEUS_STIM_QC:
        proteusStimQc();
        break;
    case engine_type_e::GM_SBC:
        setGmSbc();
        break;
#if defined(HARDWARE_CI) || EFI_SIMULATOR
    case engine_type_e::PROTEUS_ANALOG_PWM_TEST:
    #if defined(HARDWARE_CI)
        setProteusAnalogPwmTest();
    #endif
        break;
#endif // HARDWARE_CI
#endif // HW_PROTEUS

#if defined(HW_HELLEN_MERCEDES) || EFI_SIMULATOR
    case engine_type_e::HELLEN_128_MERCEDES_4_CYL:
        setHellenMercedes128_4_cyl();
        break;
    case engine_type_e::HELLEN_128_MERCEDES_6_CYL:
        setHellenMercedes128_6_cyl();
        break;
    case engine_type_e::HELLEN_128_MERCEDES_8_CYL:
        setHellenMercedes128_8_cyl();
        break;
#endif

#ifdef HW_HELLEN_NISSAN
    case engine_type_e::HELLEN_121_NISSAN_4_CYL:
        setHellen121nissanQR();
        break;
    case engine_type_e::HELLEN_121_NISSAN_6_CYL:
        setHellen121nissanVQ();
        break;
#endif

#ifdef HW_HELLEN_HYUNDAI
    case engine_type_e::HELLEN_154_HYUNDAI_COUPE_BK1:
        setGenesisCoupeBK1();
        break;
    case engine_type_e::HELLEN_154_HYUNDAI_COUPE_BK2:
        setGenesisCoupeBK2();
        break;
#endif

#if defined(HW_HELLEN_8CHAN) || defined(HW_HELLEN_UAEFI121) || defined(HW_HELLEN_UAEFI)
    case engine_type_e::GM_SBC:
        setGmSbc();
        break;
#endif

#if defined(HW_HELLEN_121_VAG) || defined(HW_HELLEN_UAEFI) || defined(HW_HELLEN_UAEFI121) || EFI_SIMULATOR
    case engine_type_e::VAG_5_CYL:
        setVag_5_cyl();
        break;
#endif

#if defined(HW_HELLEN_121_VAG) || EFI_SIMULATOR
    case engine_type_e::HELLEN_121_VAG_V6_CYL:
        setHellen121Vag_v6_cyl();
        break;
    case engine_type_e::HELLEN_121_VAG_VR6_CYL:
        setHellen121Vag_vr6_cyl();
        break;
    case engine_type_e::HELLEN_121_VAG_8_CYL:
        setHellen121Vag_8_cyl();
        break;
#endif

#ifdef HW_HELLEN
    case engine_type_e::TOYOTA_1NZ_FE:
        setToyota1NZFE();
        break;
    case engine_type_e::HELLEN_HONDA_BCM:
        setHondaCivicBcm();
        break;
#endif // HW_HELLEN
#if defined(HW_NUCLEO_F767) || defined(HW_NUCLEO_H743) || defined(HW_FRANKENSO) || HW_PROTEUS || EFI_SIMULATOR
    // used in HW CI
    case engine_type_e::VW_ABA:
        setVwAba();
        break;
    case engine_type_e::FRANKENSO_BMW_M73_F:
        setBMW_M73_TwoCoilUnitTest();
        break;
#endif // HW_FRANKENSO || HW_PROTEUS

    case engine_type_e::TEST_ISSUE_6451:
        testEngine6451();
        break;

#if defined(HW_FRANKENSO) || EFI_SIMULATOR || defined(HW_NUCLEO_F767) || defined(HW_NUCLEO_H743) || defined(SUPPORT_GY6)
    case engine_type_e::GY6_139QMB:
        setGy6139qmbDefaultEngineConfiguration();
        break;
#endif

#if defined(HW_FRANKENSO) || EFI_SIMULATOR || defined(HW_NUCLEO_F767) || defined(HW_NUCLEO_H743)
    case engine_type_e::DEFAULT_FRANKENSO:
        setFrankensoConfiguration();
        break;
    case engine_type_e::FRANKENSO_TEST_33810:
#if EFI_PROD_CODE
        setDiscovery33810Test();
#endif
        break;
    case engine_type_e::TEST_ENGINE:
        setTestCamEngineConfiguration();
        break;
    case engine_type_e::TEST_CRANK_ENGINE:
        setTestCrankEngineConfiguration();
        break;
    case engine_type_e::DODGE_NEON_1995:
        setDodgeNeon1995EngineConfiguration();
        break;
    case engine_type_e::DODGE_NEON_2003_CRANK:
        setDodgeNeonNGCEngineConfiguration();
        break;
    case engine_type_e::FORD_ASPIRE_1996:
        setFordAspireEngineConfiguration();
        break;
    case engine_type_e::FRANKENSO_MIATA_NA6_MAP:
        setMiataNA6_MAP_Frankenso();
        break;
    case engine_type_e::ETB_BENCH_ENGINE:
        setEtbTestConfiguration();
        break;
    case engine_type_e::L9779_BENCH_ENGINE:
        setL9779TestConfiguration();
        break;
    case engine_type_e::EEPROM_BENCH_ENGINE:
#if EFI_PROD_CODE && HAL_USE_EEPROM
        setEepromTestConfiguration();
#endif
        break;
    case engine_type_e::MITSUBISHI_3A92:
        setMitsubishi3A92();
        break;
    case engine_type_e::FORD_INLINE_6_1995:
        setFordInline6();
        break;
    case engine_type_e::HONDA_600:
        setHonda600();
        break;
    case engine_type_e::FORD_ESCORT_GT:
        setFordEscortGt();
        break;
    case engine_type_e::DODGE_RAM:
        setDodgeRam1996();
        break;
    case engine_type_e::TEST_ENGINE_VVT:
        setTestVVTEngineConfiguration();
        break;
    case engine_type_e::TEST_DC_WASTEGATE_DISCOVERY:
        setTestDcWastegateConfiguration();
        break;
    case engine_type_e::SACHS:
        setSachs();
        break;
    case engine_type_e::TOYOTA_2JZ_GTE_VVTi:
        setToyota_2jz_vics();
        break;
    case engine_type_e::TEST_33816:
        setTest33816EngineConfiguration();
        break;
    case engine_type_e::TEST_ROTARY:
        setRotary();
        break;
#endif // HW_FRANKENSO
    case engine_type_e::BMW_M52:
      bmwM52();
    break;
#if defined(HW_SUBARU_EG33) || EFI_SIMULATOR
    case engine_type_e::SUBARU_EG33:
        setSubaruEG33Defaults();
        break;
#endif //HW_SUBARU_EG33
    default:
      applyUnknownEngineType(engineType);
    }
    boardAfterTuneDefaults(engineType);
}

Referenced by resetConfigurationExt().

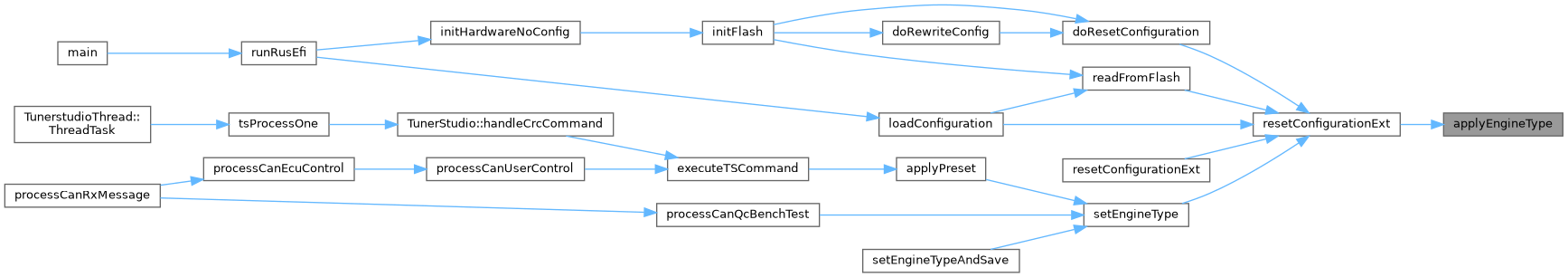

Here is the caller graph for this function:

applyUnknownEngineType()

PUBLIC_API_WEAK_SOMETHING_WEIRD void applyUnknownEngineType

(

engine_type_e

engineType

)

Definition at line 51 of file engine_type_impl.cpp.

                                                                                      {
        firmwareError(ObdCode::CUSTOM_UNEXPECTED_ENGINE_TYPE, "Unexpected engine type: %d", (int)engineType);
}

Referenced by applyEngineType().

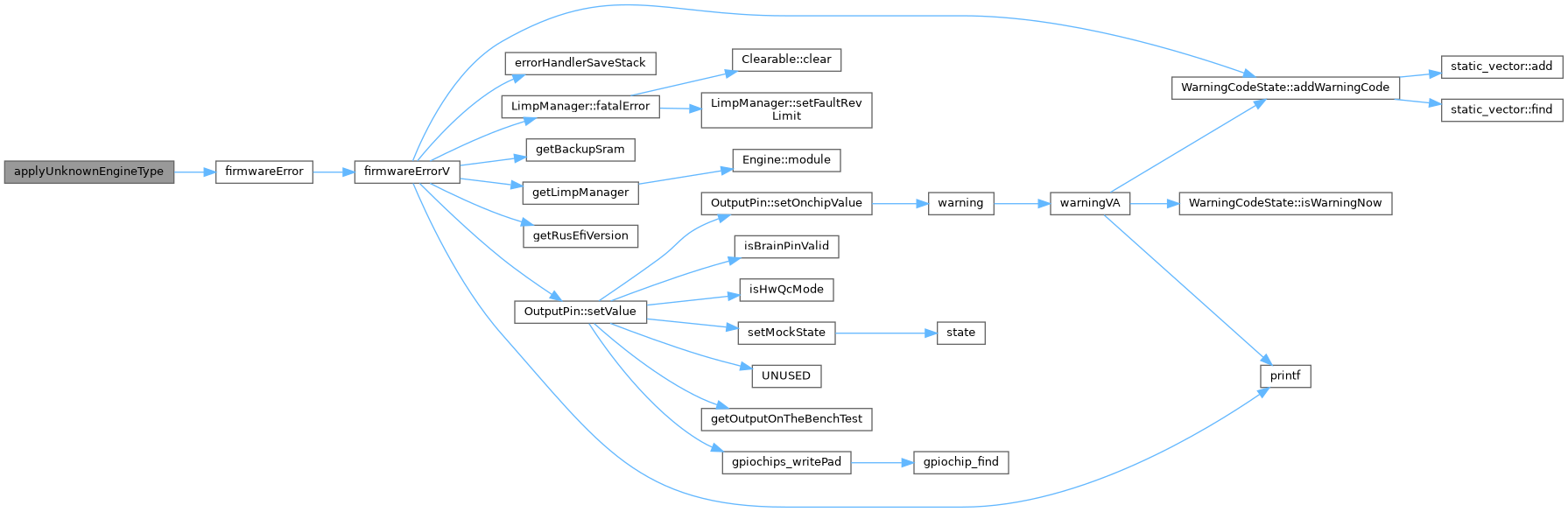

Here is the call graph for this function:

Here is the caller graph for this function:

boardAfterTuneDefaults()

PUBLIC_API_WEAK void boardAfterTuneDefaults

(

engine_type_e

engineType

)

Definition at line 55 of file engine_type_impl.cpp.

{ UNUSED(engineType); }

Referenced by applyEngineType().

Here is the call graph for this function:

Here is the caller graph for this function:

getLastEngineType()

PUBLIC_API_WEAK_SOMETHING_WEIRD engine_type_e getLastEngineType

(

)

Definition at line 427 of file engine_type_impl.cpp.

                                                                  {
  return engine_type_e::UNUSED_105;
}

Go to the source code of this file.
