lua_hooks.h File Reference

Data Structures
struct	LuaOverrideSensor

Functions
void	configureRusefiLuaHooks (lua_State *)

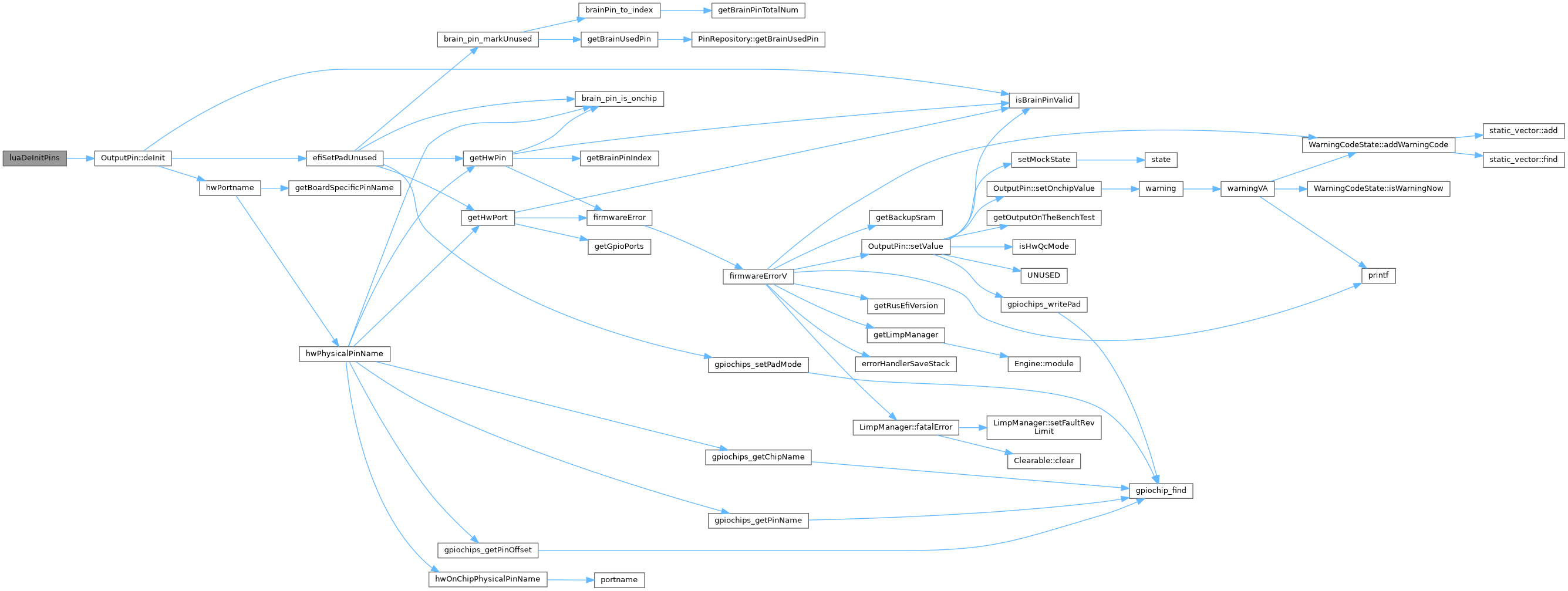

void	luaDeInitPins ()
AirmassModelBase &	getLuaAirmassModel ()

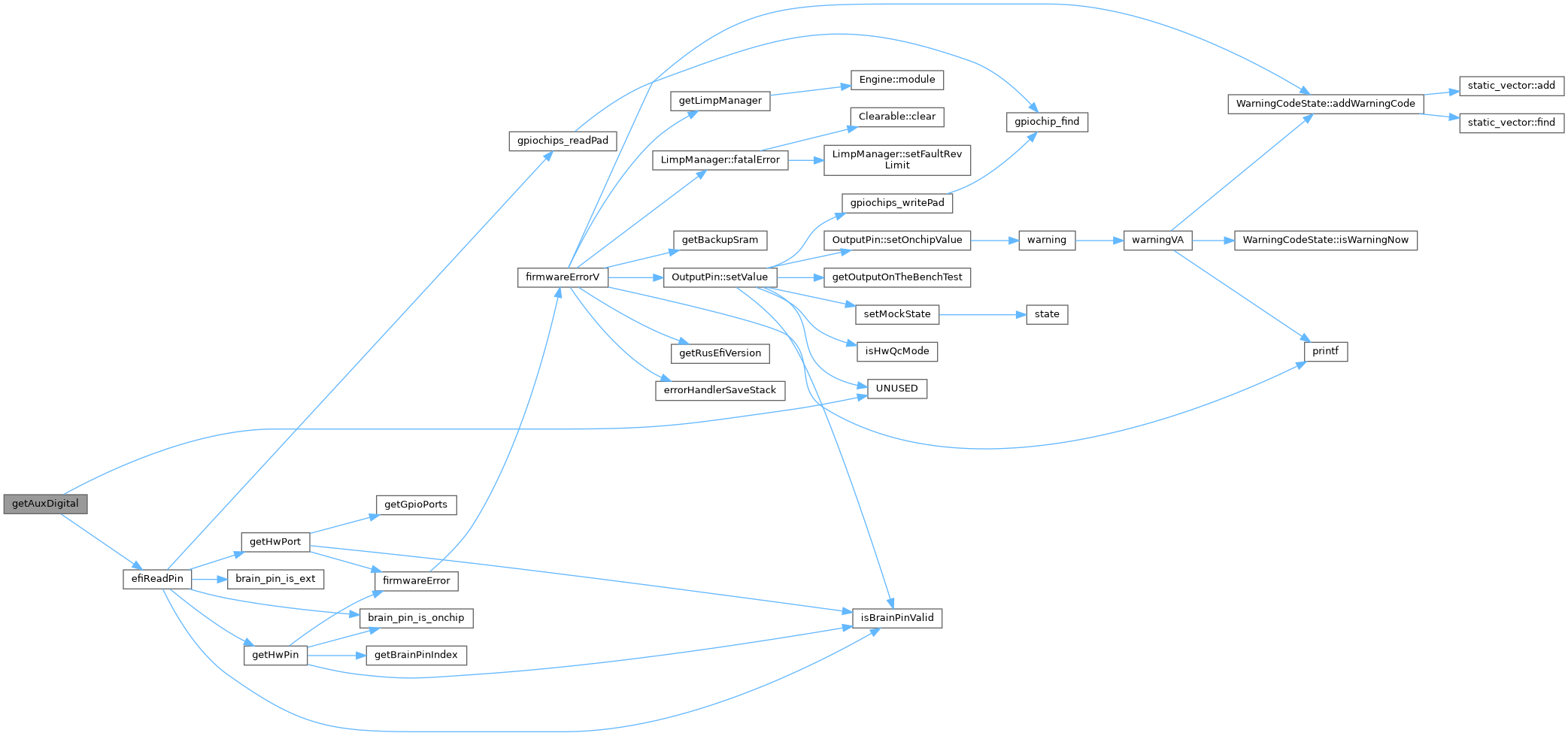

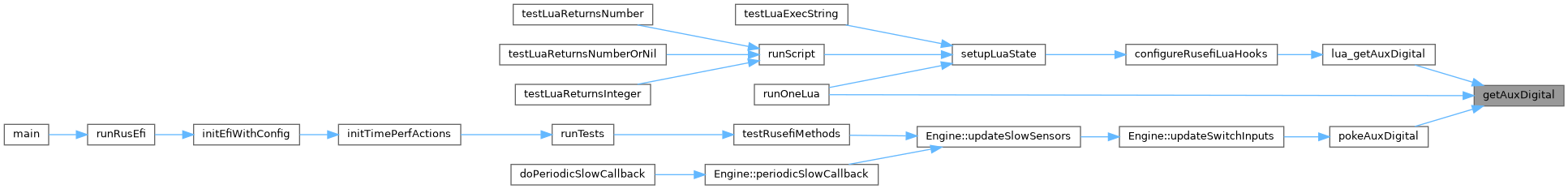

bool	getAuxDigital (int index)

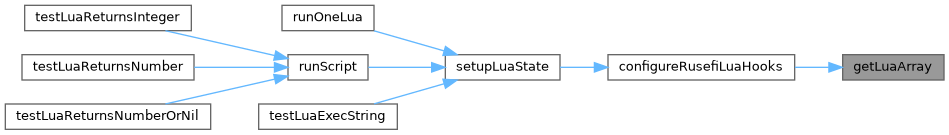

uint32_t	getLuaArray (lua_State *l, int paramIndex, uint8_t *data, uint32_t size)

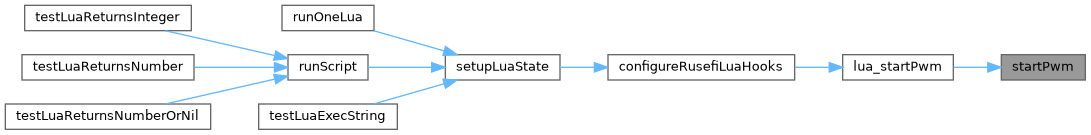

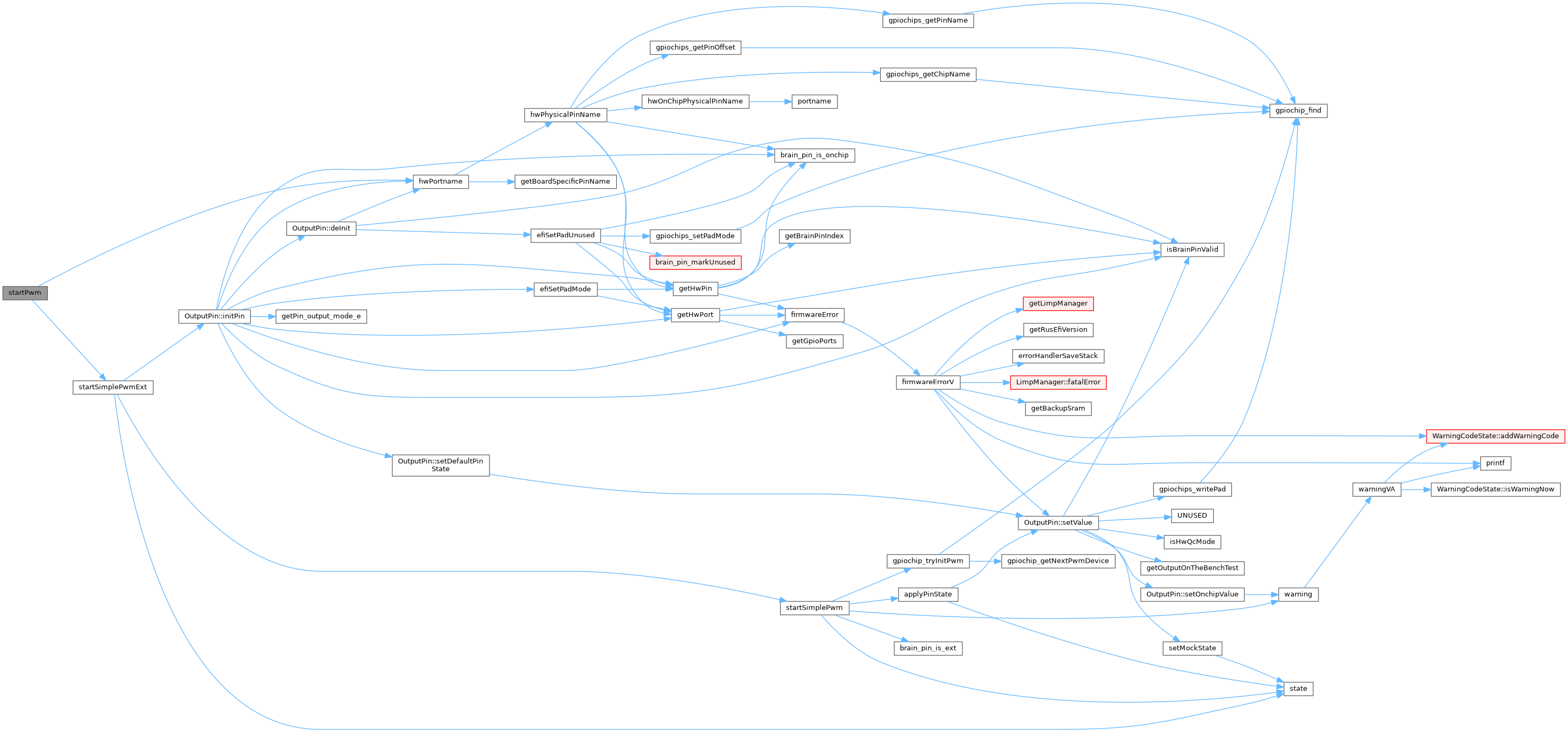

void	startPwm (int index, float freq, float duty)

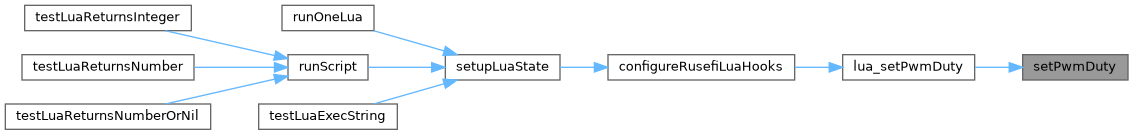

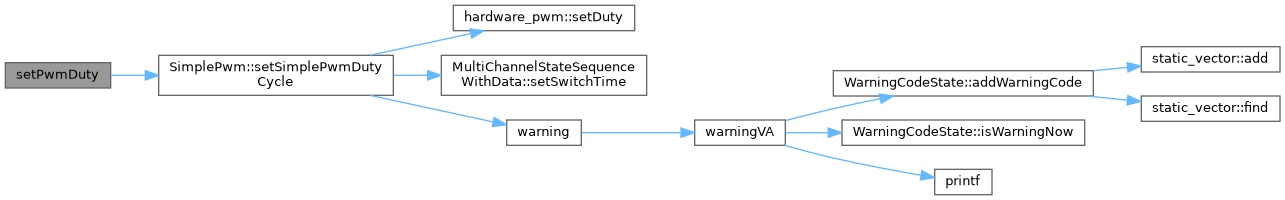

void	setPwmDuty (int index, float duty)

Function Documentation

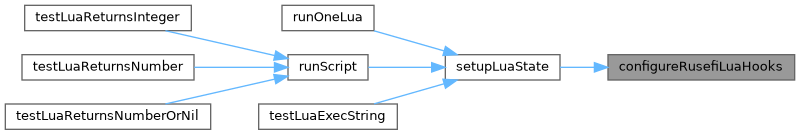

configureRusefiLuaHooks()

void configureRusefiLuaHooks

(

lua_State *

lState

)

same exact could be accomplished via LuaSensor just with more API

Definition at line 642 of file lua_hooks.cpp.

                                                {
  boardConfigureLuaHooks(lState);

  tinymt32_init(&tinymt, 1534525); // todo: share instance with launch_control? probably not?
    lua_register(lState, "random", [](lua_State* l) {
      auto random = tinymt32_generate_float(&tinymt);
        lua_pushnumber(l, random);
        return 1;
    });

    LuaClass<Timer> luaTimer(lState, "Timer");
    luaTimer
        .ctor()
        .fun("reset",             static_cast<void (Timer::*)()     >(&Timer::reset            ))
        .fun("getElapsedSeconds", static_cast<float(Timer::*)()const>(&Timer::getElapsedSeconds));

    LuaClass<LuaSensor> luaSensor(lState, "Sensor");
    luaSensor
        .ctor<lua_State*, const char*>()
        .fun("set", &LuaSensor::set)
        .fun("setRedundant", &LuaSensor::setRedundant)
        .fun("setTimeout", &LuaSensor::setTimeout)
        .fun("invalidate", &LuaSensor::invalidate);

#ifndef WITH_LUA_PID
#define WITH_LUA_PID TRUE
#endif

#if WITH_LUA_PID
  LuaClass<LuaBiQuad> biQuard(lState, "Biquad");
  biQuard
    .ctor()
        .fun("filter", &LuaBiQuad::filter)
        .fun("configureLowpass", &LuaBiQuad::configureLowpass);

    LuaClass<LuaPid> luaPid(lState, "Pid");
    luaPid
        .ctor<float, float, float, float, float>()
        .fun("get", &LuaPid::get)
        .fun("setOffset", &LuaPid::setOffset)
        .fun("reset", &LuaPid::reset);

    LuaClass<LuaIndustrialPid> luaIndustrialPid(lState, "IndustrialPid");
    luaIndustrialPid
        .ctor<float, float, float, float, float>()
        .fun("get", &LuaIndustrialPid::get)
        .fun("setOffset", &LuaIndustrialPid::setOffset)
        .fun("setDerivativeFilterLoss", &LuaIndustrialPid::setDerivativeFilterLoss)
        .fun("setAntiwindupFreq", &LuaIndustrialPid::setAntiwindupFreq)
        .fun("reset", &LuaIndustrialPid::reset);
#endif

    configureRusefiLuaUtilHooks(lState);

    lua_register(lState, "readPin", lua_readpin);
#if EFI_PROD_CODE && EFI_SHAFT_POSITION_INPUT
    lua_register(lState, "startCrankingEngine", [](lua_State* l) {
        doStartCranking();
        return 0;
    });
#endif // EFI_PROD_CODE && EFI_SHAFT_POSITION_INPUT
    lua_register(lState, "vin", lua_vin);

    lua_register(lState, "getAuxAnalog", lua_getAuxAnalog);
    lua_register(lState, "getSensorByIndex", lua_getSensorByIndex);
    lua_register(lState, "getSensor", lua_getSensorByName);
    lua_register(lState, "getSensorRaw", lua_getSensorRaw);
    lua_register(lState, "hasSensor", lua_hasSensor);

#ifndef WITH_LUA_CONSUMPTION
#define WITH_LUA_CONSUMPTION TRUE
#endif

#if EFI_VEHICLE_SPEED && WITH_LUA_CONSUMPTION && defined (MODULE_ODOMETER)
    lua_register(lState, "getConsumedGrams", [](lua_State* l) {
        lua_pushnumber(l, engine->module<TripOdometer>()->getConsumedGrams());
        return 1;
    });
    lua_register(lState, "getConsumedGramsRemainder", [](lua_State* l) {
        lua_pushnumber(l, engine->module<TripOdometer>()->getConsumedGramsRemainder());
        return 1;
    });
    lua_register(lState, "getConsumptionGramPerSecond", [](lua_State* l) {
        lua_pushnumber(l, engine->module<TripOdometer>()->getConsumptionGramPerSecond());
        return 1;
    });
    lua_register(lState, "resetOdometer", [](lua_State*) {
        engine->module<TripOdometer>()->reset();
        return 0;
    });
#endif // EFI_VEHICLE_SPEED WITH_LUA_CONSUMPTION MODULE_ODOMETER
    lua_register(lState, "table3d", [](lua_State* l) {
        auto humanTableIdx = luaL_checkinteger(l, 1);
        auto x = luaL_checknumber(l, 2);
        auto y = luaL_checknumber(l, 3);

        // index table, compute table lookup
        auto result = getscriptTable(humanTableIdx - HUMAN_OFFSET)->getValue(x, y);

        lua_pushnumber(l, result);
        return 1;
    });
    // time since console or TunerStudio
    lua_register(lState, "secondsSinceTsActivity", [](lua_State* l) {
        lua_pushinteger(l, getSecondsSinceChannelsRequest());
        return 1;
    });

    lua_register(lState, "curve", [](lua_State* l) {
        // index starting from 1
        auto humanCurveIdx = luaL_checkinteger(l, 1);
        auto x = luaL_checknumber(l, 2);

        auto result = getCurveValue(humanCurveIdx - HUMAN_OFFSET, x);

        lua_pushnumber(l, result);
        return 1;
    });

#if EFI_PROD_CODE || EFI_SIMULATOR
extern int luaCommandCounters[LUA_BUTTON_COUNT];

    lua_register(lState, "getTsButtonCount",
            [](lua_State* l) {
            auto humanIndex = luaL_checkinteger(l, 1);
            if (humanIndex < 1 || humanIndex > LUA_BUTTON_COUNT) {
              luaL_error(l, "Invalid button index: %d", humanIndex);
              return 0;
            }
            lua_pushinteger(l, luaCommandCounters[humanIndex - 1]);
            return 1;
    });
#endif // EFI_PROD_CODE || EFI_SIMULATOR

#if EFI_PROD_CODE && EFI_SENT_SUPPORT
    lua_register(lState, "getSentValue",
            [](lua_State* l) {
            auto humanIndex = luaL_checkinteger(l, 1);
            auto value = getSentValue(static_cast<SentInput>(humanIndex));
            lua_pushnumber(l, value);
            return 1;
    });

    lua_register(lState, "getSentValues",
            [](lua_State* l) {
            uint16_t sig0;
            uint16_t sig1;
            auto humanIndex = luaL_checkinteger(l, 1);
            /*auto ret = */getSentValues(static_cast<SentInput>(humanIndex), &sig0, &sig1);
            lua_pushinteger(l, sig0);
            lua_pushinteger(l, sig1);
            return 2;
    });
#endif // EFI_SENT_SUPPORT

#if EFI_LAUNCH_CONTROL
    lua_register(lState, "setSparkSkipRatio", [](lua_State* l) {
        auto targetSkipRatio = luaL_checknumber(l, 1);
        engine->engineState.luaSoftSparkSkip = targetSkipRatio;
        engine->engineState.updateSparkSkip();
        return 0;
    });
    lua_register(lState, "setSparkHardSkipRatio", [](lua_State* l) {
        auto targetSkipRatio = luaL_checknumber(l, 1);
        engine->engineState.luaHardSparkSkip = targetSkipRatio;
        engine->engineState.updateSparkSkip();
        return 0;
    });
    lua_register(lState, "setLaunchTrigger", [](lua_State* l) {
        auto value = luaL_checkinteger(l, 1);
    engine->launchController.luaLaunchState = value;
        return 0;
    });
#endif // EFI_LAUNCH_CONTROL
#if EFI_ANTILAG_SYSTEM
    lua_register(lState, "setRollingIdleTrigger", [](lua_State* l) {
        auto value = luaL_checkinteger(l, 1);
    engine->antilagController.luaAntilagState = value;
        return 0;
    });
#endif // EFI_ANTILAG_SYSTEM

#if EFI_EMULATE_POSITION_SENSORS && !EFI_UNIT_TEST
    lua_register(lState, "selfStimulateRPM", [](lua_State* l) {
        auto rpm = luaL_checkinteger(l, 1);
        if (rpm < 1) {
            disableTriggerStimulator();
            return 0;
        }
        if (!engine->triggerCentral.directSelfStimulation) {
            enableTriggerStimulator();
        }
        setTriggerEmulatorRPM(rpm);
        return 0;
    });
#endif // EFI_UNIT_TEST

    /**
     * same exact could be accomplished via LuaSensor just with more API
     */
    lua_register(lState, "setLuaGauge", [](lua_State* l) {
        auto index = luaL_checkinteger(l, 1) - 1;
        auto value = luaL_checknumber(l, 2);
        if (index < 0 || index >= LUA_GAUGE_COUNT)
            return 0;
        extern StoredValueSensor luaGauges[LUA_GAUGE_COUNT];
        luaGauges[index].setValidValue(value, getTimeNowNt());
        return 0;
    });

    lua_register(lState, "enableCanTx", [](lua_State* l) {
        engine->allowCanTx = lua_toboolean(l, 1);
        return 0;
    });

    lua_register(lState, "enableCanRxWorkaround", [](lua_State*) {
        // that's about global_can_data
        engineConfiguration->luaCanRxWorkaround = true;
        return 0;
    });
// high-performance CANbus should be done on F7+, let's preserve couple of priceless bytes on F4
#if !defined(STM32F4)
#if EFI_CAN_SUPPORT
    lua_register(lState, "getCanRxDropped", [](lua_State* l) {
      auto count = getLuaCanRxDropped();
    lua_pushinteger(l, count);
        return 1;
    });
#endif // EFI_CAN_SUPPORT
    lua_register(lState, "disableExtendedCanBroadcast", [](lua_State*) {
        // that's about global_can_data
        engineConfiguration->enableExtendedCanBroadcast = false;
        return 0;
    });
    lua_register(lState, "getCanBaudRate", [](lua_State* l) {
      auto index = luaL_checkinteger(l, 1);
      if (index == 1) {
        lua_pushinteger(l, engineConfiguration->canBaudRate);
      } else {
        lua_pushinteger(l, engineConfiguration->can2BaudRate);
      }
        return 1;
    });
#endif // STM32F4

#if !defined(STM32F4) || defined(WITH_LUA_GET_GPPWM_STATE)
    lua_register(lState, "getGpPwm", [](lua_State* l) {
      auto index = luaL_checkinteger(l, 1);
      // this works due to updateGppwm being invoked from periodicSlowCallback
      auto result = engine->outputChannels.gppwmOutput[index];
      lua_pushnumber(l, result);
        return 1;
    });
#endif

#if EFI_ELECTRONIC_THROTTLE_BODY && EFI_PROD_CODE
  lua_register(lState, "getEtbTarget", [](lua_State* l) {
    auto controller = engine->etbControllers[0];
        assertNotNull(controller, 0);
    auto result = controller->getCurrentTarget();
        lua_pushnumber(l, result);
        return 1;
  });
    lua_register(lState, "restartEtb", [](lua_State*) {
        // this is about Lua sensor acting in place of real analog PPS sensor
        // todo: smarter implementation
        doInitElectronicThrottle(true); // lame, we run with 'isStartupInit=true' in order to reset, NOT COOL
        return 0;
    });
#endif // EFI_ELECTRONIC_THROTTLE_BODY

    // checksum stuff
    lua_register(lState, "crc8_j1850", [](lua_State* l) {
        uint8_t data[8];
        uint32_t length = getLuaArray(l, 1, data, sizeof(data));
        auto trimLength = luaL_checkinteger(l, 2);
        int crc = crc8(data, minI(length, trimLength));

        lua_pushinteger(l, crc);
        return 1;
    });

#if EFI_BOOST_CONTROL
    lua_register(lState, "setBoostTargetAdd", [](lua_State* l) {
        engine->module<BoostController>().unmock().luaTargetAdd = luaL_checknumber(l, 1);
        return 0;
    });
    lua_register(lState, "setBoostTargetMult", [](lua_State* l) {
        engine->module<BoostController>().unmock().luaTargetMult = luaL_checknumber(l, 1);
        return 0;
    });
    lua_register(lState, "setBoostDutyAdd", [](lua_State* l) {
        engine->module<BoostController>().unmock().luaOpenLoopAdd = luaL_checknumber(l, 1);
        return 0;
    });
#endif // EFI_BOOST_CONTROL
#if EFI_IDLE_CONTROL
    lua_register(lState, "setIdleAdd", [](lua_State* l) {
        engine->module<IdleController>().unmock().luaAdd = luaL_checknumber(l, 1);
        return 0;
    });
    lua_register(lState, "setIdleRpm", [](lua_State* l) {
      auto rpm = luaL_checknumber(l, 1);
    setLinearCurve(config->cltIdleRpm, rpm, rpm, 1);
        return 0;
    });
#endif
    lua_register(lState, "setTimingAdd", [](lua_State* l) {
        engine->ignitionState.luaTimingAdd = luaL_checknumber(l, 1);
        return 0;
    });
#ifndef DISABLE_LUA_SET_TIMING_MULT
    lua_register(lState, "setTimingMult", [](lua_State* l) {
        engine->ignitionState.luaTimingMult = luaL_checknumber(l, 1);
        return 0;
    });
#endif // !defined(DISABLE_LUA_SET_TIMING_MULT)
#ifndef DISABLE_LUA_SET_FUEL_ADD
    lua_register(lState, "setFuelAdd", [](lua_State* l) {
        engine->engineState.lua.fuelAdd = luaL_checknumber(l, 1);
        return 0;
    });
#endif // !defined(DISABLE_LUA_SET_FUEL_ADD)
    lua_register(lState, "setFuelMult", [](lua_State* l) {
        engine->engineState.lua.fuelMult = luaL_checknumber(l, 1);
        return 0;
    });
#if EFI_ELECTRONIC_THROTTLE_BODY && EFI_PROD_CODE
    lua_register(lState, "setEtbAdd", [](lua_State* l) {
        auto luaAdjustment = luaL_checknumber(l, 1);

        setEtbLuaAdjustment(luaAdjustment);

        return 0;
    });
    lua_register(lState, "setEwgAdd", [](lua_State* l) {
        auto luaAdjustment = luaL_checknumber(l, 1);

        setEwgLuaAdjustment(luaAdjustment);

        return 0;
    });
    lua_register(lState, "setEtbDisabled", [](lua_State* l) {
        engine->engineState.lua.luaDisableEtb = lua_toboolean(l, 1);
        return 0;
    });
#endif // EFI_ELECTRONIC_THROTTLE_BODY
#if EFI_PROD_CODE
    lua_register(lState, "setIgnDisabled", [](lua_State* l) {
        engine->engineState.lua.luaIgnCut = lua_toboolean(l, 1);
        return 0;
    });
    lua_register(lState, "setFuelDisabled", [](lua_State* l) {
        engine->engineState.lua.luaFuelCut = lua_toboolean(l, 1);
        return 0;
    });
    lua_register(lState, "setDfcoDisabled", [](lua_State* l) {
        engine->engineState.lua.disableDecelerationFuelCutOff = lua_toboolean(l, 1);
        return 0;
    });
#endif // EFI_PROD_CODE

    lua_register(lState, "setClutchUpState", [](lua_State* l) {
        engine->engineState.lua.clutchUpState = lua_toboolean(l, 1);
        return 0;
    });
    lua_register(lState, "setClutchDownState", [](lua_State* l) {
        engine->engineState.lua.clutchDownState = lua_toboolean(l, 1);
        return 0;
    });
    lua_register(lState, "setBrakePedalState", [](lua_State* l) {
        engine->engineState.lua.brakePedalState = lua_toboolean(l, 1);
        return 0;
    });

    lua_register(lState, "setAcRequestState", [](lua_State* l) {
        engine->engineState.lua.acRequestState = lua_toboolean(l, 1);
        return 0;
    });

#if !defined(STM32F4)
    lua_register(lState, "getTorque", [](lua_State* l) {
        auto rpm = Sensor::getOrZero(SensorType::Rpm);
        auto tps = Sensor::getOrZero(SensorType::Tps1);

        auto result = interpolate3d(
                        config->torqueTable,
                        config->torqueLoadBins, tps,
                        config->torqueRpmBins, rpm
                    );
        lua_pushnumber(l, result);
        return 1;
    });
#endif

    lua_register(lState, "setTorqueReductionState", [](lua_State* l) {
        engine->engineState.lua.torqueReductionState = lua_toboolean(l, 1);
        return 0;
    });

    lua_register(lState, "getCalibration", [](lua_State* l) {
        auto propertyName = luaL_checklstring(l, 1, nullptr);
        auto result = getConfigValueByName(propertyName);
        lua_pushnumber(l, result);
        return 1;
    });

#if EFI_TUNER_STUDIO && (EFI_PROD_CODE || EFI_SIMULATOR)
    lua_register(lState, "getOutput", [](lua_State* l) {
        auto propertyName = luaL_checklstring(l, 1, nullptr);
         // fresh values need to be requested explicitly, there is no periodic invocation of that method
        updateTunerStudioState();
        auto result = getOutputValueByName(propertyName);
        lua_pushnumber(l, result);
        return 1;
    });
#endif // EFI_PROD_CODE || EFI_SIMULATOR

#if EFI_SHAFT_POSITION_INPUT
    lua_register(lState, "getEngineState", [](lua_State* l) {
        spinning_state_e state = engine->rpmCalculator.getState();
        int luaStateCode;
        if (state == STOPPED) {
            luaStateCode = 0;
        } else if (state == RUNNING) {
            luaStateCode = 2;
        } else {
            // spinning-up or cranking
            luaStateCode = 1;
        }
        lua_pushinteger(l, luaStateCode);
        return 1;
    });
#endif //EFI_SHAFT_POSITION_INPUT

    lua_register(lState, "setCalibration", [](lua_State* l) {
        auto propertyName = luaL_checklstring(l, 1, nullptr);
        auto value = luaL_checknumber(l, 2);
        auto incrementVersion = lua_toboolean(l, 3);
        bool isGoodName = setConfigValueByName(propertyName, value);
        if (isGoodName) {
            efiPrintf("LUA: applying [%s][%f]", propertyName, value);
        } else {
            efiPrintf("LUA: invalid calibration key [%s]", propertyName);
        }
        if (incrementVersion) {
            incrementGlobalConfigurationVersion("lua");
        }
        return 0;
    });
    lua_register(lState, CMD_BURNCONFIG, [](lua_State*) {
      requestBurn();
        return 0;
    });

    lua_register(lState, "getGlobalConfigurationVersion", [](lua_State* l) {
        lua_pushinteger(l, engine->getGlobalConfigurationVersion());
        return 1;
    });

    lua_register(lState, "setAcDisabled", [](lua_State* l) {
        auto value = lua_toboolean(l, 1);
        engine->module<AcController>().unmock().isDisabledByLua = value;
        return 0;
    });
    lua_register(lState, "getTimeSinceAcToggleMs", [](lua_State* l) {
        float result = engine->module<AcController>().unmock().timeSinceStateChange.getElapsedSeconds() * 1000;
        lua_pushnumber(l, result);
        return 1;
    });

#if !EFI_UNIT_TEST
    lua_register(lState, "startPwm", lua_startPwm);
    lua_register(lState, "setPwmDuty", lua_setPwmDuty);
    lua_register(lState, "setPwmFreq", lua_setPwmFreq);
    lua_register(lState, "getFan", [](lua_State* l) {
                                        lua_pushboolean(l, enginePins.fanRelay.getLogicValue());
                                        return 1;
                                    });
    lua_register(lState, "getFan2", [](lua_State* l) {
                                        lua_pushboolean(l, enginePins.fanRelay2.getLogicValue());
                                        return 1;
                                    });
    lua_register(lState, "getAcRelay", [](lua_State* l) {
                                        lua_pushboolean(l, enginePins.acRelay.getLogicValue());
                                        return 1;
                                    });
    lua_register(lState, "getDigital", lua_getDigital);
    lua_register(lState, "getAuxDigital", lua_getAuxDigital);
    lua_register(lState, "setDebug", lua_setDebug);
#if EFI_ENGINE_CONTROL
    lua_register(lState, "getAirmass", lua_getAirmass);
    lua_register(lState, "setAirmass", lua_setAirmass);
#endif // EFI_ENGINE_CONTROL


#ifndef WITH_LUA_STOP_ENGINE
#define WITH_LUA_STOP_ENGINE TRUE
#endif

#if WITH_LUA_STOP_ENGINE
    lua_register(lState, "isFirmwareError", [](lua_State* l) {
        lua_pushboolean(l, hasFirmwareError());
        return 1;
    });
#if EFI_SHAFT_POSITION_INPUT
    lua_register(lState, "stopEngine", [](lua_State*) {
        doScheduleStopEngine(StopRequestedReason::Lua);
        return 0;
    });
    lua_register(lState, "isEngineStopRequested", [](lua_State* l) {
        bool result = getLimpManager()->shutdownController.isEngineStop(getTimeNowNt());
        lua_pushboolean(l, result);
        return 1;
    });
    lua_register(lState, "getTimeSinceTriggerEventMs", [](lua_State* l) {
        int result = engine->triggerCentral.m_lastEventTimer.getElapsedUs() / 1000;
        lua_pushinteger(l, result);
        return 1;
    });
#endif // EFI_SHAFT_POSITION_INPUT
#endif // WITH_LUA_STOP_ENGINE

#if EFI_CAN_SUPPORT
    lua_register(lState, "canRxAdd", lua_canRxAdd);
    lua_register(lState, "canRxAddMask", lua_canRxAddMask);
#endif // EFI_CAN_SUPPORT
#endif // not EFI_UNIT_TEST

#if EFI_CAN_SUPPORT || EFI_UNIT_TEST
    lua_register(lState, "txCan", lua_txCan);
#endif

#if EFI_PROD_CODE
  /* todo: hasCriticalReportFile method #7291
    lua_register(lState, "hasCriticalReportFile", [](lua_State*) {
        // todo: actual method to scan SD card for error report files
        lua_pushinteger(l, hasCriticalReportFile());
      return 1;
  }
*/
#endif // EFI_PROD_CODE

#if EFI_PROD_CODE && HW_HELLEN
    lua_register(lState, "hellenEnablePower", [](lua_State*) {
        hellenEnableEn("Lua");
        return 0;
    });
    lua_register(lState, "hellenDisablePower", [](lua_State*) {
        hellenDisableEn("Lua");
        return 0;
    });
#endif // HW_HELLEN

#if EFI_DAC
    lua_register(lState, "setDacVoltage", [](lua_State* l) {
        auto channel = luaL_checkinteger(l, 1);
        auto voltage = luaL_checknumber(l, 2);
        setDacVoltage(channel, voltage);
        return 0;
    });
#endif // EFI_DAC

    LuaClass<SignalDebounce> luaDebounce(lState, "SignalDebounce");
    luaDebounce
        .ctor<float>()
        .fun("set", &SignalDebounce::set)
        .fun("get", &SignalDebounce::get);

#if EFI_UNIT_TEST
    lua_register(lState, "advanceTimeUs", [](lua_State *l){
        auto us = luaL_checknumber(l, 1);
        advanceTimeUs(us);
        return 0;
    });
#endif // EFI_UNIT_TEST
}

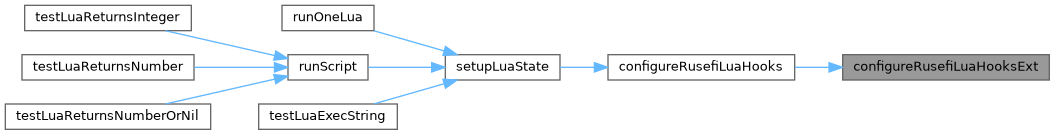

Referenced by setupLuaState().

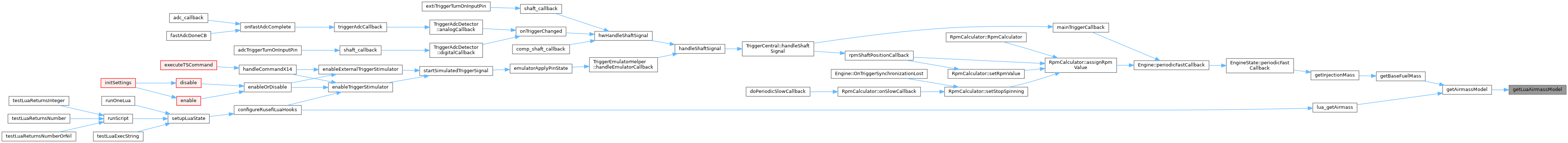

Here is the caller graph for this function:

getAuxDigital()

bool getAuxDigital

(

int

index

)

Definition at line 365 of file lua_hooks.cpp.

                              {
#if EFI_PROD_CODE
    return efiReadPin(engineConfiguration->luaDigitalInputPins[index]);
#else
    UNUSED(index);
    return false;
#endif
}

Referenced by lua_getAuxDigital(), pokeAuxDigital(), and runOneLua().

Here is the call graph for this function:

Here is the caller graph for this function:

getLuaAirmassModel()

AirmassModelBase & getLuaAirmassModel

(

)

Definition at line 251 of file lua_hooks.cpp.

                                       {
    return luaAirmass;
}

Referenced by getAirmassModel().

Here is the caller graph for this function:

getLuaArray()

uint32_t getLuaArray	(	lua_State *	l,
		int	paramIndex,
		uint8_t *	data,
		uint32_t	size
	)

Returns

number of elements

Definition at line 140 of file lua_hooks.cpp.

                                                                                 {
    uint32_t result = 0;

    luaL_checktype(l, paramIndex, LUA_TTABLE);
    while (true) {
        lua_pushnumber(l, result + 1);
        auto elementType = lua_gettable(l, paramIndex);
        auto val = lua_tonumber(l, -1);
        lua_pop(l, 1);

        if (elementType == LUA_TNIL) {
            // we're done, this is the end of the array.
            break;
        }

        if (elementType != LUA_TNUMBER) {
            // We're not at the end, but this isn't a number!
            luaL_error(l, "Unexpected data at position %d: %s", result, lua_tostring(l, -1));
        }

        // This element is valid, increment DLC
        result++;

        if (result > size) {
            luaL_error(l, "Input array longer than buffer");
        }
        else {
            data[result - 1] = val;
        }
    }
    return result;
}

Referenced by configureRusefiLuaHooks().

Here is the caller graph for this function:

luaDeInitPins()

void luaDeInitPins

(

)

Definition at line 311 of file lua_hooks.cpp.

                     {
    // Simply de-init all pins - when the script runs again, they will be re-init'd
    for (size_t i = 0; i < efi::size(enginePins.luaOutputPins); i++) {
        enginePins.luaOutputPins[i].deInit();
    }
}

Referenced by resetLua().

Here is the call graph for this function:

Here is the caller graph for this function:

setPwmDuty()

void setPwmDuty	(	int	index,
		float	duty
	)

Definition at line 318 of file lua_hooks.cpp.

                                       {
    // clamp to 0..1
    duty = clampF(0, duty, 1);

    pwms[index].setSimplePwmDutyCycle(duty);
}

Referenced by lua_setPwmDuty().

Here is the call graph for this function:

Here is the caller graph for this function:

startPwm()

void startPwm	(	int	index,
		float	freq,
		float	duty
	)

Definition at line 279 of file lua_hooks.cpp.

                                                 {
    // clamp to 1..1000 hz, this line would turn 0hz on/off PWM into 1hz behind the scenes
    freq = clampF(1, freq, 1000);

  brain_pin_e pwmPin = engineConfiguration->luaOutputPins[index];

    startSimplePwmExt(
        &pwms[index], "lua", &engine->scheduler,
        pwmPin, &enginePins.luaOutputPins[index],
        freq, duty
    );

    efiPrintf("LUA PWM on %s at %f initial duty",
      hwPortname(pwmPin),
      PERCENT_MULT * duty);
}

Referenced by lua_startPwm().

Here is the call graph for this function:

Here is the caller graph for this function:

Go to the source code of this file.
